PCB Footprint Expert - USER GUIDE

PCB Footprint Expert to DipTrace

The DipTrace Library Expert produces PADS Library-file output (*.p and .d) for one component or (if the Multi-Part Wizard is used) multiple components.

Import Instructions:

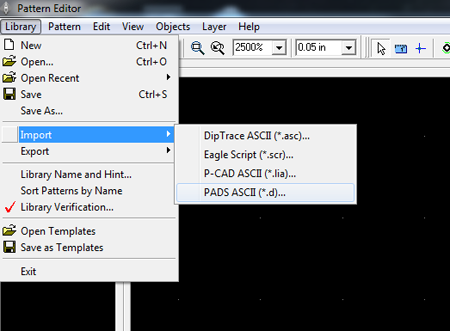

1. Run DipTrace Pattern Editor and select Library / Import / PADS ASCII (.d).

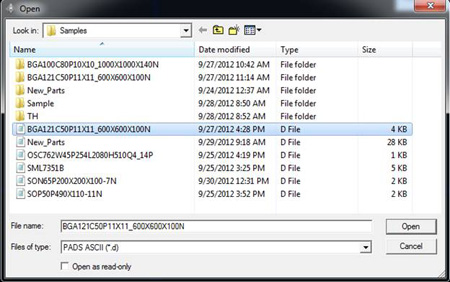

2. In the File Dialog, change to the Output Directory, select the .d file, and then open.

3. The part is now in DipTrace. Save and use the part as needed.

Your parts have now been successfully imported and are ready to use.
