Why waste HOURS creating or searching for 3D models?!

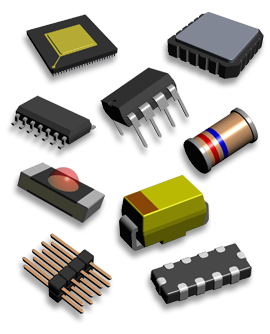

Our software automatically creates 3D STEP models - see samples!
Just click a button!!
Make your PCB design projects pop with the Footprint Expert for 3D STEP! We simplified the creation of 3D parts so much, your receptionist can create stunningly high quality 3D parts with 5 minutes of training!
Our FPX file browser allows you to search the database for the component you need, then simply push a button to automatically generate a high-resolution 3D component package in standard STEP format! Used in conjunction with our PCB Footprint Expert, you can build both footprints and 3D models together. The PCB Footprint Expert empowers you to make remarkably clean, professional PCB layouts with minimal effort.
Verify your footprint solder joints with accurate 3D models. Visualize the physical component body, the lead forms and polarity markings with how they line up with your silkscreen outline and pad geometry before you manufacture your PCB design. Don’t blindly spend big bucks on manufacturing without validating the accuracy of your footprint first. Use 3D technology made possible by PCB Footprint Expert!
The powerful features of the Footprint Expert for 3D STEP include:
- STEP Format supported: AP203, AP214
- Proven to work very nicely with numerous applications that import 3D STEP:
Altium, Cadence, CADSTAR, CR-5000, Expedition, Solid Edge, SolidWorks, and more!
- Auto-generate high quality 3D STEP models from component dimensions! wow!!
- Specify different colors for various parts of component (body, leads, LED, etc) wow!!
- Supports 50+ Surface Mount and Through Hole component families (not freeform)
- Integrate with Footprint module for 20 different CAD formats
- The 3D STEP model matches the origin and rotation of the FPX Footprint
- Our advanced CAD LEAPTM Technology
(Libraries Enhanced with Automated Preferences)
- Parts on Demand 2+ million parts (subscription optional purchase)*
- BOM Builder Service (subscription optional purchase)*
- New part requests, regardless complexity, as little as $5 each**
- 12 Months of updates included!
- Ability to create footprints with arbitrary pad shapes and positions
- Low cost & FASTEST return on investment
- High priority phone, email, or shared desktop support
- Perpetual license does not expire; no maintenance
- 1 Year maintenance renewal is 20% the list cost of license(s)
- FREE training webinars as needed, one-on-one or group
- Add and modify library documentation
- User definable preferences or define and customize default rules wow!!
- Save component dimensions to a library file
- Search, edit, save functions for effective part library management
- Flexibility to add, delete, or modify data fields - for example:
- Corporate Part Number
- Schematic Symbol Name
- Created By / Date
- Purchased From
- Bulk / Piece Price
- DigiKey Part Number
- Project Name
- etc... (no limit!)
* Access to the POD database is available for $300/year, download limit is 500 parts per month. Previously purchased maintenance that included POD access will continue to have POD access as purchased until that maintenance is due for renewal. Latest Footprint Expert version is highly recommended as POD data format is periodically updated to accommodate new Footprint Expert features.
** New part requests start at $5, per pricing schedule posted on POD credits page.
PLUS all the features of the FREE Footprint Expert "Pro" edition, which include:
- IPC-7351 compliant
- Enter component dimensions using Nominal plus tolerance or Min/Max dimensions
- Dynamic support for Imperial and metric - easily convert between mil and metric units
- Convert units calculator
- Apply rules to component families and component terminal lead types
- User friendly GUI easy to learn
- Padstack editor
- Email & forum support
- ...and more!!
(licensed outputs in the Enterprise Edition are purchased options, not free features)
Licensing & Requirements
Single User License
This license entitles you to install and run the software on one local computer. This solution is ideal for the PCB design contractor or companies with one PCB designer. The Single User is licensed on USB key, and can be easily moved to any computer as needed. Contracting and/or always changing computers? No problem, we make it a snap!!
The Network License is available for all the users you need! It is ideal where library standardization is desired, regardless the CAD formats used. Professionals or novices can now easily create libraries according to company specification and customer requirements.
Before you purchase anything, you can evaluate the software to see how it works for you. It only takes minutes to evaluate! Contact Us if you have any questions or prefer a walk-through!
MS-Windows based computer, running Windows 10, 8, 7, or Vista (Windows XP may work, but is no longer supported by Microsoft), the Microsoft .NET Framework 4.0 (downloadable from Microsoft), 15MB of hard drive space, a USB port, and display resolution of 1024 x 768.
