These features are all included in our Output to CAD productsWelcome to the next generation of PCB library development. The Footprint Expert is the original IPC footprint automation solution, it effortlessly creates footprints from component data, and outputs to all major CAD formats (available separately). Here is what you get with Librarian (FPX only) license:
- Our advanced CAD LEAPTM Technology
(Libraries Enhanced with Automated Preferences)
- Parts on Demand 2+ million parts (subscription optional purchase)*
- BOM Builder Service (subscription optional purchase)*
- New part requests, regardless complexity, as little as $5 each**
- 12 Months of updates included!
- Ability to create footprints with arbitrary pad shapes and positions
- Low cost & FASTEST return on investment
- High priority phone, email, or shared desktop support
- Perpetual license does not expire; no maintenance
- 1 Year maintenance renewal is 20% the list cost of license(s)
- FREE training webinars as needed, one-on-one or group
- Add and modify library documentation
- User definable preferences or define and customize default rules wow!!
- Save component dimensions to a library file

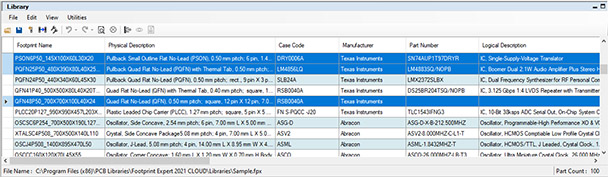

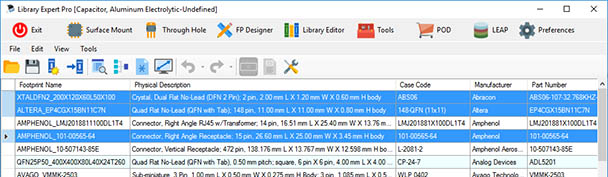

- Search, edit, save functions for effective part library management
- Flexibility to add, delete, or modify data fields - for example:
- Corporate Part Number
- Schematic Symbol Name
- Created By / Date
- Purchased From
- Bulk / Piece Price
- DigiKey Part Number
- Project Name
- etc... (no limit!)
* Access to the POD database is available for $300/year, download limit is 500 parts per month. Previously purchased maintenance that included POD access will continue to have POD access as purchased until that maintenance is due for renewal. Latest Footprint Expert version is highly recommended as POD data format is periodically updated to accommodate new Footprint Expert features.
** New part requests start at $5, per pricing schedule posted on POD credits page.
PLUS all the features of the FREE Footprint Expert "Pro" edition, which include:
- Pin rename & renumber
- Calculate high resolution footprints directly from component dimensions
- IPC-7351 compliant
- Enter component dimensions using Nominal plus tolerance or Min/Max dimensions
- Automate creation of component manufacturer recommended footprints
- One-click rotate/mirror footprint, very useful for rapid LGA/BGA design wow!!
- One-click pad shapes supported: Rectangle, Oblong, D-Shape, and Rounded Rectangle
- Dynamic support for Imperial and metric - easily convert between mil and metric units
- Convert units calculator
- Apply rules to component families and component terminal lead types
- User friendly GUI easy to learn
- Padstack editor
- Email & forum support
- ...and more!!
(licensed outputs in the Enterprise Edition are purchased options, not free features)
The Librarian function only saves Footprint Expert data, it does not output to CAD tools. To keep prices low, each CAD output is licensed separately - you do not need to purchase anything you do not use! If you get one of the CAD output licenses, the Librarian function is included at no extra cost. Select an option below to see more details:
CR-5000 / CR-8000 DesignSpark DipTrace EAGLE Expedition McCAD
OrCAD Layout OrCAD PCB PADS Standard PADS Professional Pantheon
P-CAD Pulsonix SoloPCB Ultiboard 3D STEP Models Librarian (FPX) Only
NOTE: Our high-quality, user-friendly PCB Footprint Expert Lite is free to everyone! But you might not want to stop there - we included some very powerful Advanced Library Management features in the full version... the Librarian Tools and Preferences:
We built the Footprint Expert around the notion that there are as many unique PCB library needs as there are users.
If you consider tolerance settings, units, line-widths, pad shapes, rotations, and many dozens of other settings (all configurable with the PCB Footprint Expert), you can create over 1,800 variations of ONE SINGLE library! We empower you to quickly build high-quality standard libraries to meet your specific needs.
5-Tier Density Variations Supported
1IPC A: Maximum (Most) Land Protrusion – For low-density product applications, the 'maximum' land pattern condition has been developed to accommodate wave or flow solder of leadless chip devices and leaded gull wing devices. The geometry furnished for these devices, as well as inward and "J" - formed lead contact device families, may provide a wider process window for reflow solder processes as well.
2IPC B: Median (Nominal) Land Protrusion – Products with a moderate level of component density may consider adapting the 'median' land pattern geometry. The median land patterns furnished for all device families will provide a robust solder attachment condition for reflow solder processes and should provide a condition suitable for wave or reflow soldering of leadless chip and leaded Gull Wing type devices.
3IPC C: Minimum (Least) Land Protrusion – High component density typical of portable and hand-held product applications may consider the 'minimum' land pattern geometry variation. Selection of the minimum land pattern geometry may not be suitable for all product use categories. The use of classes of performance 1, 2, and 3 is combined with that of component density levels A, B, and C in explaining the condition of an electronic assembly. As an example, combining the description as Levels 1A or 3B or 2C, would indicate the different combinations of performance and component density to aid in understanding the environment and the manufacturing requirements of a particular assembly.
4User-defined preferences. Companies can establish a standard set of preferences to apply to all users of the PCB Footprint Expert! Settings include:
Component manufacturer-recommended footprint.
The Footprint Expert is synchronized to the latest guidelines of the IPC-7351, and IPC-J-STD-001 (Requirements for Soldered Electrical and Electronic Assemblies). You want your PCB Layout to pass the J-STD-001 standard for solder joint acceptability in the PCB assembly process. You also get the ability to migrate your entire library to future revisions or your own custom-defined requirements as well! Why is this important? Because it ensures that everybody - regardless of experience or language - can build high-quality parts in the same standard, professional way!
Improve your PCB Library skills with solder joint goal knowledge. Take the IPC-J-STD-001 training class ASAP! The PCB designer and EE engineer should have as much information about the PCB assembly process as possible for DFA (Design for Assembly).
We have been involved in IPC standards development for many years, and are intimately familiar with both, the IPC-7351 and J-STD-001.
The Product Sheet (PDF) is available in a few languages:
Download and install the Evaluation License for the PCB Footprint Expert to see for yourself how it can benefit you! Feel free to contact us or any of our world-wide distributors with questions or to request no-obligation demos!
There are seven types of licenses:
- Single User USB Key (perpetual)
- Network USB Key (perpetual)
- Global Network USB Key (perpetual)
- Single User SL (12-month based refresh)
- Network SL (12-month based refresh)
- Global Network SL (12-month based refresh)
- Lease License (with MAC address limit)
By default, all quotes issued are for the perpetual USB Key, our most popular configuration. Users who want to go without a USB Key (for example if installing a Network License on a virtual server), have the option of the SL license.
Leased License (Cloud)
Two types of Leased Licenses are available 1) Regular, which may be shared on company site, or by employees working from home within 100 miles / 161 kilometers from company site, and 2) Global, which may be shared with other company users via a secured Virtual Private Network (VPN) globally. The Lease License is available in monthly and annual increments, with access limited by quantity of MAC addresses purchased. The availability of this license is subject to a number of variables such as internet connectivity, firewall settings, etc.
PCBL may impose other restrictions for users of the Leased License, such as Software upgrade requirements, meaning you will need to upgrade to keep using the Software. Availability of this license is subject to numerous variables related to network/internet connectivity between you and PCBL servers, as well as downtime due to other reasons - such downtime for updates or maintenance. Proxy Servers are not supported.
Single User License (USB Key)
This perpetual license entitles you to install and run the software on one local computer. This solution is ideal for the PCB design contractor or companies with one PCB designer. The Single User is licensed on USB key, and can be easily moved to any computer as needed. Contracting and/or always changing computers? No problem, we make it a snap!!
Network License (USB Key)
The Network License is perpetual and available for all the users you need! It is ideal where library standardization is desired, regardless the CAD formats used. Professionals or novices can now easily create libraries according to company specification and customer requirements. The Network License is based on a network-enabled USB key that may be placed on a server or even a regular/user's computer. Once configured, when a user on the network opens the Footprint Expert, a license is automatically checked out from the key. When the Footprint Expert is closed, the license is made available for others to check out.
Global Network License (USB Key)
The Global Network License is identical to the Network License, but in addition also gives customer right to place the Network License on the company's globally-accessible network so it is available to company users outside the location assigned to the license.
Single-SL, Network-SL, and Global-Network-SL Licenses
The HASP "SL" Licenses (Single and Network) are not perpetual and expire 12 months after purchase, at which time they cease to function unless they either get Refreshed or Replaced.
- Refresh - renewing same License ID (on same machine, or server if a network license)
- Replace - issue a new License ID for a new PC or server
There will be no cost to REFRESH nor REPLACE either SL license if in conjunction with a software maintenance purchase. If no software maintenance is purchased, and the license needs to be refreshed for a Footprint Expert version that is no longer on active software maintenance, the 12-month REFRESH will be subject to a non-refundable processing fee of $100. THERE IS NO GUARANTEE that older versions of the Footprint Expert will function as intended - or at all - with newer operating systems, patches, .NET Framework updates, etc.
If the license needs to be installed on a new computer or a new activation is required for whatever reason, a REPLACEMENT license will be required, and will be subject to a non-refundable processing fee of $125; customer and PCBL may need to take steps to terminate all previously issued license(s)/activation(s) that are being replaced. A limit of 3 license replacements are allowed for each VERSION of the Footprint Expert for which a license is purchased, after which the licenses must be repurchased.
NOTE: All costs associated with REFRESH or REPLACEMENT of SL Licenses are subject to reasonable change year to year.
User Accounts are needed to login and download the latest release of the Footprint Expert, as well as access POD. User Accounts are limited to one (1) per Single User License, and three (3) for Network Licenses. Footprint Expert Enterprise users may consider POD Subscriptions - online part data that complements the Footprint Expert software, and many users purchase together.
Before you purchase anything, you can evaluate the software to see how it works for you. It only takes minutes to evaluate! Contact Us if you have any questions or prefer a walk-through!
Microsoft Windows based computer, running Windows 10, 8, 7, or Vista*, the Microsoft .NET Framework 4.0 (downloadable from Microsoft), 40MB of hard drive space, a USB port, and display resolution of 1024 x 768.
*Although quite a few Footprint Expert users have Windows XP, it is no longer supported by Microsoft and our ability to support XP is limited.
