Hello,

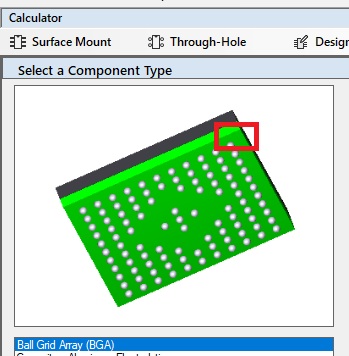

For BGA packages result shape of PCB along with 3D as shown in image below.

The Green Color representing the FR4 substrate material needs to be removed from some BGAs.



Below sample FPX.


Back to Top

Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5891 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 16 hours 12 minutes ago at 8:32am

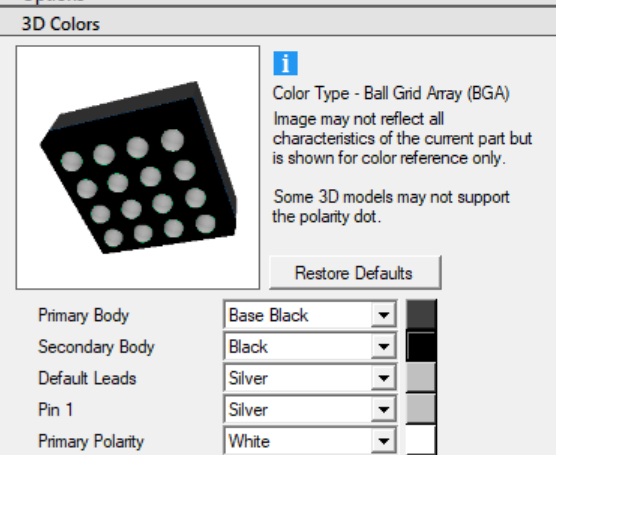

You can change color assignments in the Calculator 3D Model Color panel.

Change the Green Substrate to Black.

You have complete control of every color assignment for every component family.
Stay connected - follow us! X - LinkedIn
Back to Top
m.elsayed View Drop Down
Advanced User
Advanced User


Joined: 22 Sep 2016
Status: Offline
Points: 106 		Post Options Post Options   Thanks (0) Thanks(0)   Quote m.elsayed Quote  Post ReplyReply Direct Link To This Post Posted: 12 hours 13 minutes ago at 12:31pm
Hi

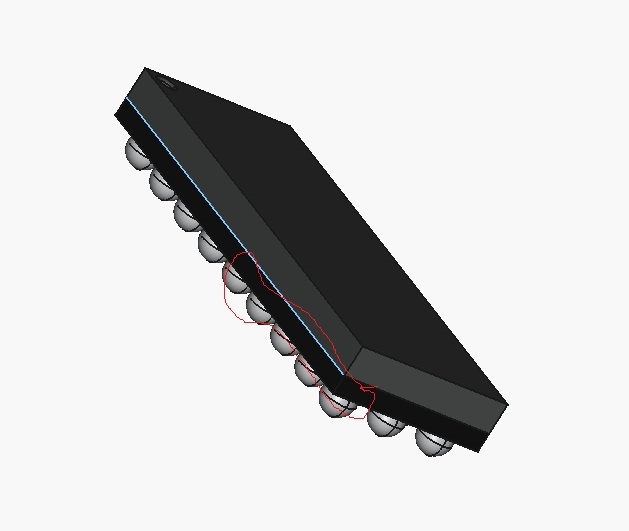

i try do this like below image

but note result 3D black not same as substrate one

 is there way to make primary body and secondary one be same colour level
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5891 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 10 hours 44 minutes ago at 2:00pm
Do Not Select 'Black'.

Select the same color as the Primary Body 'Base Black'.

Black and Base Black are 2 different colors.
Stay connected - follow us! X - LinkedIn
Back to Top
m.elsayed View Drop Down
Advanced User
Advanced User


Joined: 22 Sep 2016
Status: Offline
Points: 106 		Post Options Post Options   Thanks (0) Thanks(0)   Quote m.elsayed Quote  Post ReplyReply Direct Link To This Post Posted: 9 hours 7 minutes ago at 3:37pm
That's great, but when open colors window can't find base black, how to reach it please
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5891 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 8 hours 56 minutes ago at 3:48pm
It's the 3rd color from the top of the scroll list.
Stay connected - follow us! X - LinkedIn
Back to Top
m.elsayed View Drop Down
Advanced User
Advanced User


Joined: 22 Sep 2016
Status: Offline
Points: 106 		Post Options Post Options   Thanks (0) Thanks(0)   Quote m.elsayed Quote  Post ReplyReply Direct Link To This Post Posted: 8 hours 47 minutes ago at 3:57pm
I got it, Thanks Tom
