PLCC

 Post Reply Post Reply
Author
Message
magnus.lictor View Drop Down
Advanced User
Advanced User
Avatar

Joined: 27 Aug 2012
Location: Amsterdam, NL
Status: Offline
Points: 60
Post Options Post Options   Thanks (0) Thanks(0)   Quote magnus.lictor Quote  Post ReplyReply Direct Link To This Post Topic: PLCC
    Posted: 31 May 2021 at 5:42am


Hi,

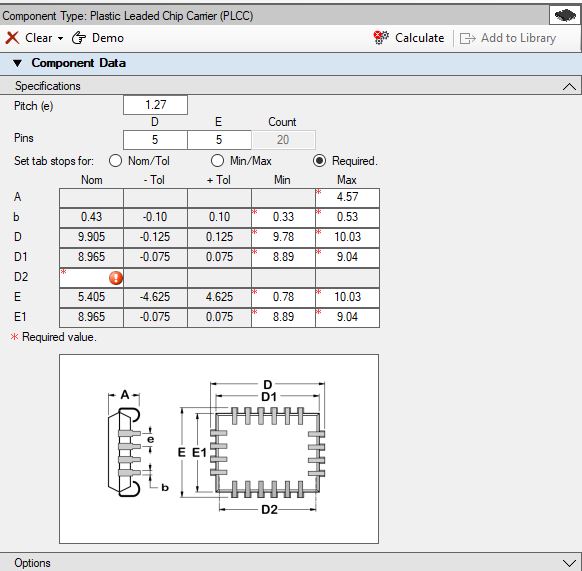

Can you tell me what the D2 dimension stands for. As it is not a dimension in my datasheet but required by the footprint designer.
And, when the D2 dimension is not applicable what should I use?


regards, Charles
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 31 May 2021 at 9:01am
D2 = The Terminal Lead Center.

Most PLCC mfr.'s provide that dimension.
