Pin 1 definition Vs Tape&Reel format

 Post Reply Post Reply
Author
Message
Nightwish View Drop Down
Active User
Active User
Avatar

Joined: 20 Feb 2012
Location: Shanghai China
Status: Offline
Points: 33
Post Options Post Options   Thanks (0) Thanks(0)   Quote Nightwish Quote  Post ReplyReply Direct Link To This Post Topic: Pin 1 definition Vs Tape&Reel format
    Posted: 16 May 2013 at 10:39pm

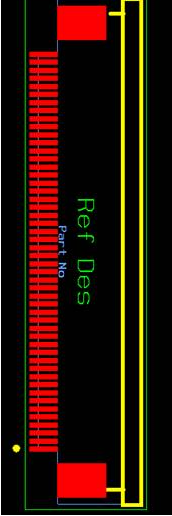

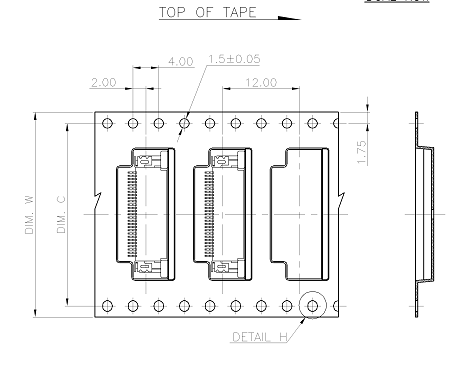

These days I created a cell for a connector and the Pin 1 is set on lowwer left while our DFME set the pin 1 on top in his VPL library. I am not sure if IPC has this kind of definition on how to define pin 1 according to component package in tape&reel? Picture below shows the snap shot of the tape&reel format.


   Cell

Thanks,

Nightwish
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 4711
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 17 May 2013 at 6:21am
The PCB Footprint Expert (FPX) allows you to output every library part in any rotation you want.

On Monday, IPC will submit a Press Release to all news publications that they are now shipping FPX Lite with the purchase of the IPC-7351 Land Pattern standard.

Back to Top
Nightwish View Drop Down
Active User
Active User
Avatar

Joined: 20 Feb 2012
Location: Shanghai China
Status: Offline
Points: 33
Post Options Post Options   Thanks (0) Thanks(0)   Quote Nightwish Quote  Post ReplyReply Direct Link To This Post Posted: 19 May 2013 at 11:05pm
Hi Tom,

Thanks for your reply on this. I know we can easily rotate cell when creating it but I want to know if the zero rotation of land pattern has something to do with the package type in tape & reel. In Footprint Expert the default Orientation Pin 1 for TO part is down and for SOP it is left, is this an IPC standard?

Thanks,

Nightwish
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 4711
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 20 May 2013 at 6:48am
There is a standard that you can search for EIA-481-D-2008m however the biggest problem is that only a small number of component manufacturer's use it. IPC and PCB Libraries, Inc. did research on this for the IPC-7351A and discovered that even the same component manufacturer breaks the Zero Component Orientation rules. So IPC established their own Zero Component Orientation (ZCO) for Footprint library parts. Then is 2007 IEC released their own Zero Component Orientation which was rotated 90 degrees from IPC. I explain EIA, IPC and IEC ZCO in this presentation - PCB Design Optimization Starts in the CAD Library available here - http://www.pcblibraries.com/forum/pcb-design-optimization-starts-in-the-cad-library_topic468.html

EIA-481-D - 8 mm THROUGH 200 mm EMBOSSED CARRIER TAPING AND 8 mm & 12 mm PUNCHED CARRIER TAPING OF SURFACE MOUNT COMPONENTS FOR AUTOMATIC HANDLING.
