Wirebound inductor

 Post Reply Post Reply
Author
Message
dramos View Drop Down
Advanced User
Advanced User


Joined: 18 Feb 2021
Status: Offline
Points: 61
Post Options Post Options   Thanks (0) Thanks(0)   Quote dramos Quote  Post ReplyReply Direct Link To This Post Topic: Wirebound inductor
    Posted: 03 Mar 2021 at 5:55am
Hi to all:

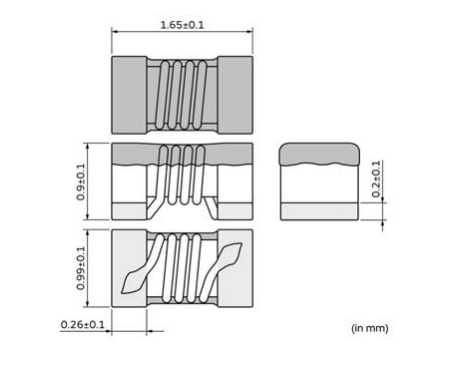

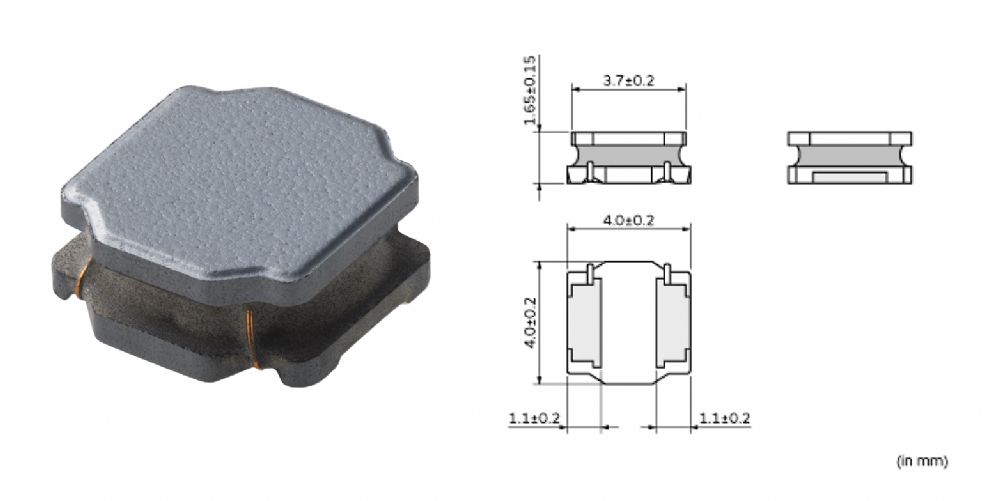

I am trying to create a footprint of a wirebound inductor, Murata LQW18AN5N6G80D.

I configured my component as an SMD/Chip/Inductor and as the metalization of the pin part is not the height of the component, I configured the height of the part as the height of the metalization.



How do you resolve that kind of components?

Thanks for your comments.
dramos


Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5657
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 03 Mar 2021 at 9:53am

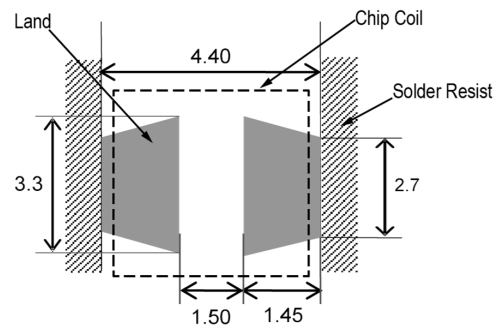

These Inductors are becoming more popular these days. There should be a mfr. recommended pattern for the footprint. If not, the pad size is:

Heel = 0.00 but you need to compensate for the +/- body length tolerance of 0.10
Side = 50% of the metal thickness height up the side (Maximum)
Toe = 100% of the metal thickness height up the side (Maximum)

So the pad size for this part is 0.56 L X 1.20 W. Add 0.05 for the Heel to compensate for the tolerance.

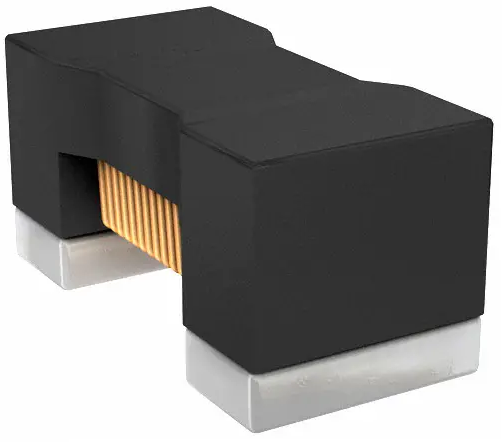

Here's a SolidWorks 3D model:




Stay connected - follow us! X - LinkedIn
Back to Top
dramos View Drop Down
Advanced User
Advanced User


Joined: 18 Feb 2021
Status: Offline
Points: 61
Post Options Post Options   Thanks (0) Thanks(0)   Quote dramos Quote  Post ReplyReply Direct Link To This Post Posted: 04 Mar 2021 at 12:17am
Hi Tom:

Yes you are right . We are using more and more this kind of components in our designs.

Many thanks for your recommendations.

Regards.
David
Back to Top
IMI4tth3w View Drop Down
New User
New User


Joined: 04 Mar 2021
Status: Offline
Points: 1
Post Options Post Options   Thanks (0) Thanks(0)   Quote IMI4tth3w Quote  Post ReplyReply Direct Link To This Post Posted: 04 Mar 2021 at 8:53am
I actually just did a footprint for one of these types of inductors.

Coilcraft seems to have pretty good guidelines for footprints in their datasheets.

Here's an example:
https://www.coilcraft.com/en-us/products/rf/ferrite-core-chip-inductors/0603-(1608)/0603ls/


Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5657
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 04 Mar 2021 at 9:06am
Continue to use the mfr. recommended pattern for this new package style and new terminal lead form.

Automating a software program to calculate the pad stack would need to identify a new terminal lead form and then the solder joint goal table for a 3-Tier density level.

It's too late to put it in IPC-7351C and it's not in IPC-J-STD-001 yet for assembly solder joint acceptability.

Stay connected - follow us! X - LinkedIn
Back to Top
Jeromeli View Drop Down
Active User
Active User


Joined: 10 Jun 2021
Status: Offline
Points: 12
Post Options Post Options   Thanks (0) Thanks(0)   Quote Jeromeli Quote  Post ReplyReply Direct Link To This Post Posted: 01 Apr 2022 at 5:55am
I have encountered a similar problem recently, and I am trying to solve it
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5657
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 01 Apr 2022 at 10:46am
You must use the Manufacturer's Recommended Pattern.
