Thermal Pad Issue |
Post Reply
|
| Author | |
m.elsayed
Advanced User
Joined: 22 Sep 2016 Status: Offline Points: 70 |
 Post Options
 Thanks(0)
 Quote Reply
 Topic: Thermal Pad IssuePosted: 11 hours 37 minutes ago at 5:56pm |
|

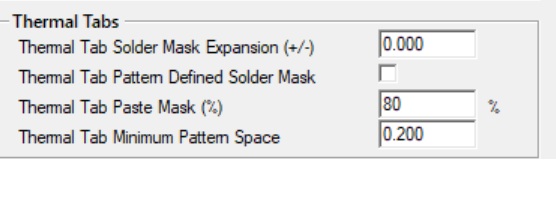

I can adjust Thermal Pad by this parameter, but when open in Altium gives wrong value.
Can have more explain how to adjust this?
|
|
 |
|
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5862 |
Post Options
Thanks(0)
Quote Reply
Posted: 11 hours 18 minutes ago at 6:15pm |
|
80% Paste Mask Reduction will not give you a Checker Board Pattern.
80% Paste Mask Reduction will provide a single paste mask aperture. 70% is the highest Paste Mask Reduction to generate a Checker Board Pattern. |
|
|
|
|
m.elsayed
Advanced User
Joined: 22 Sep 2016 Status: Offline Points: 70 |
Post Options
Thanks(0)
Quote Reply
Posted: 7 hours 45 minutes ago at 9:48pm |
|

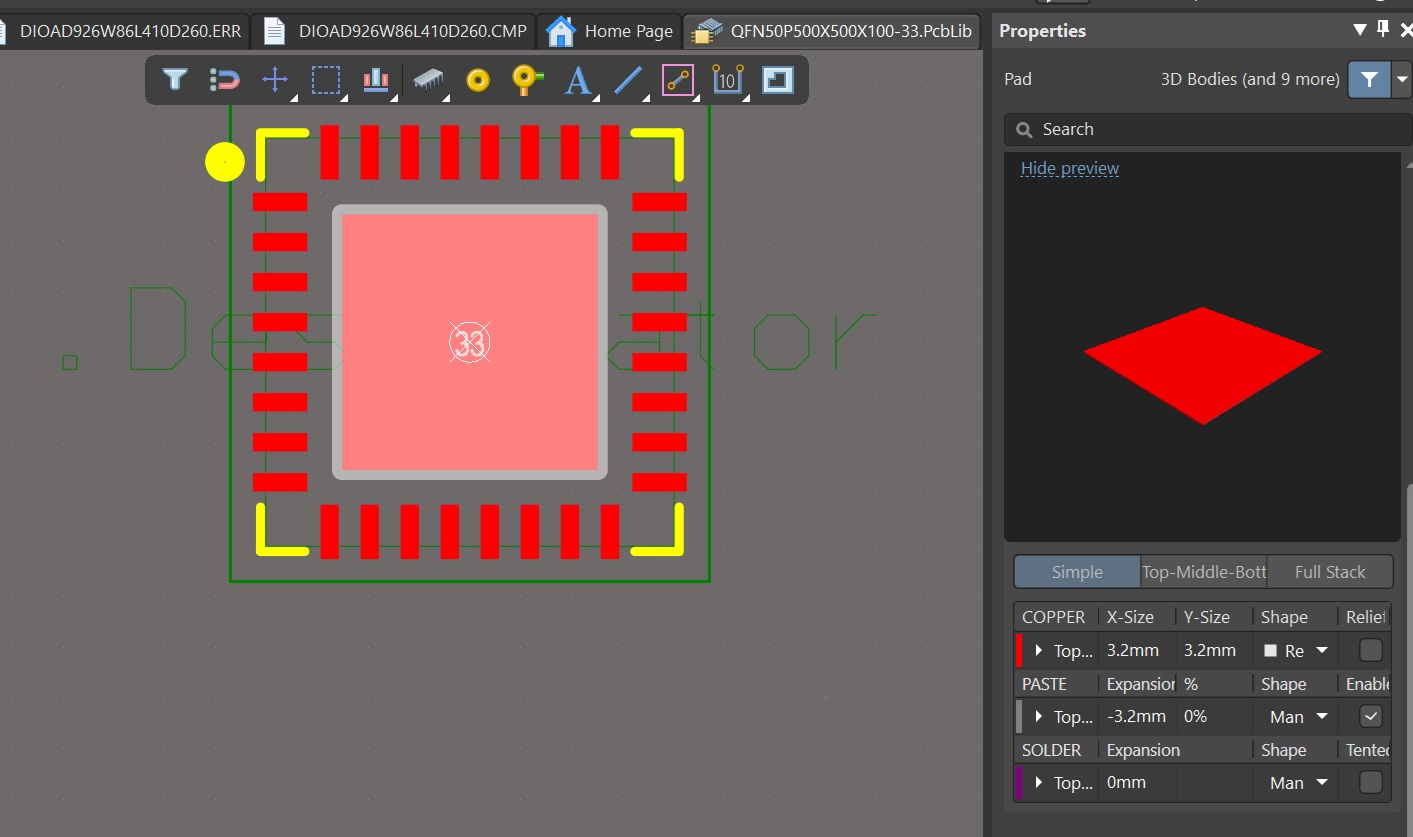

i have attached fpx, can please we have explain on it ,
if 80% not applicable why tool not block user , rather than get wrong values, please add more details for this point, when apply 70 % what values should appears in Altium
|
|
|
|
|
