Stencil Aperture Design

 Post Reply Post Reply
Author
Message
hraju View Drop Down
New User
New User
Avatar

Joined: 17 Oct 2013
Location: Bangalore,India
Status: Offline
Points: 2
Post Options Post Options   Thanks (0) Thanks(0)   Quote hraju Quote  Post ReplyReply Direct Link To This Post Topic: Stencil Aperture Design
    Posted: 17 Oct 2013 at 9:49pm
Hi Sir/Madam,

I want know detail about stencil aperture design for all type of SMT components.

Regards,
Hanumantha Raju
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5245
Post Options Post Options   Thanks (1) Thanks(1)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 18 Oct 2013 at 6:59am

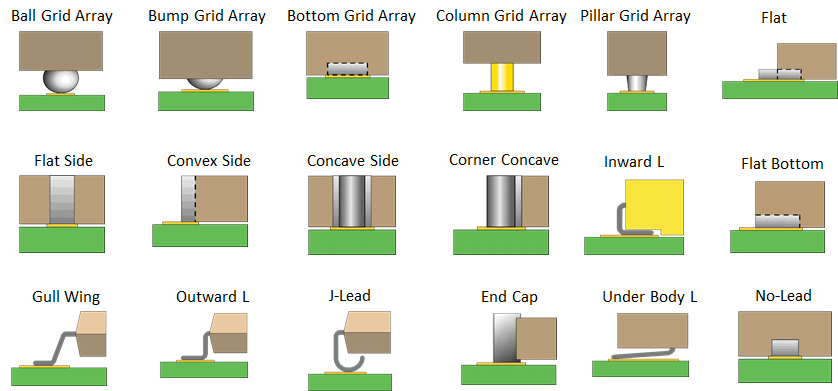

You're asking us to put a Paste Mask Stencil book on the forum. To cover every Terminal Lead -

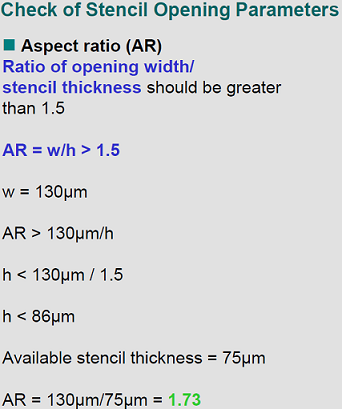

Here are some basics -

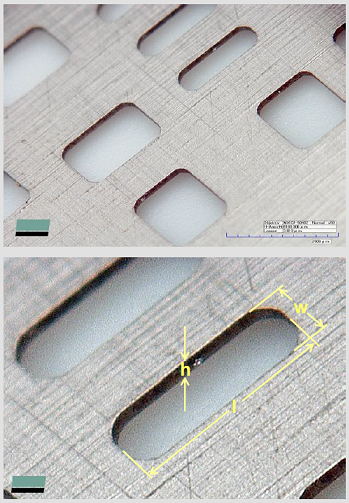

Stencil openings are cut with a laser and normally have rounded corners -


Stay connected - follow us! Twitter - LinkedIn
Back to Top
CHENONN View Drop Down
New User
New User


Joined: 30 Jul 2015
Status: Offline
Points: 3
Post Options Post Options   Thanks (0) Thanks(0)   Quote CHENONN Quote  Post ReplyReply Direct Link To This Post Posted: 06 Aug 2015 at 6:23pm
Wow, such wonderful answers! Thumbs Up Tom H

We can make any stainless stencil for you, just send us your Gerber file.

And it's very cheap too.
Back to Top
Martijn Kaandorp View Drop Down
New User
New User


Joined: 02 Nov 2016
Status: Offline
Points: 3
Post Options Post Options   Thanks (0) Thanks(0)   Quote Martijn Kaandorp Quote  Post ReplyReply Direct Link To This Post Posted: 02 Nov 2016 at 8:24am
Aspect ratio is one thing. Area ratio the next.

Checkout this excellent document!

http://documents.indium.com/qdynamo/download.php?docid=645
