SOT353 with Different Pin 1 Orientation

 Post Reply Post Reply
Author
Message
ChrisChris View Drop Down
Advanced User
Advanced User


Joined: 03 Nov 2021
Status: Offline
Points: 74
Post Options Post Options   Thanks (0) Thanks(0)   Quote ChrisChris Quote  Post ReplyReply Direct Link To This Post Topic: SOT353 with Different Pin 1 Orientation
    Posted: 20 Feb 2022 at 11:22am
Hello,

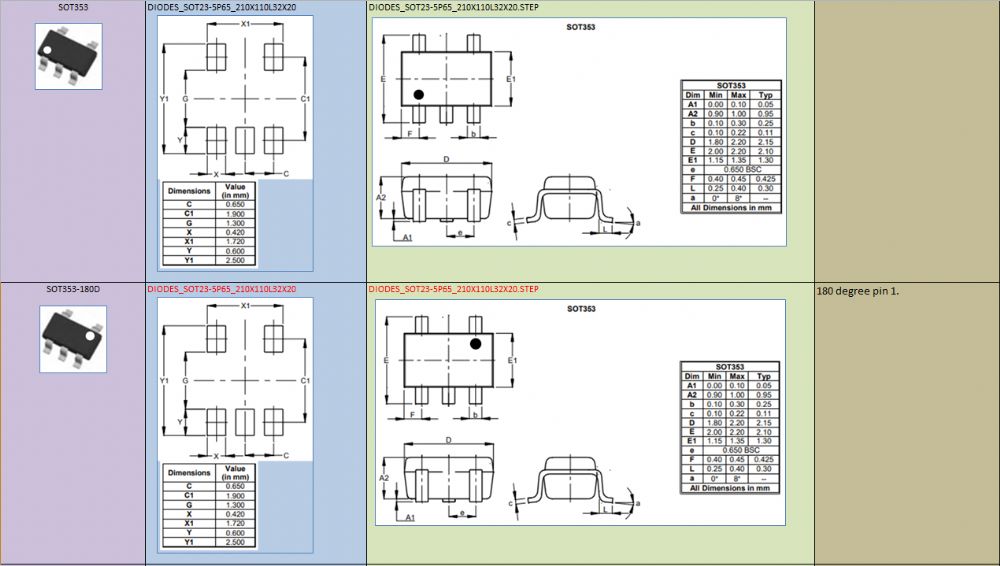

I have a somewhat odd example of an SOT353 package with 2 different pin 1 cases as follows:



I created the SOT353 with the Calculator and then cloned the part and renamed it SOT353-180D. I now need to customize this version by moving the pin 1 chamfer to the upper right without renumbering the pads. How would you recommend doing this? It does not seem like I can open a part in FP Designer that was created using the calculator. Is my only option to create this part from scratch in FP Designer?

Thanks,
Chris
Back to Top
ChrisChris View Drop Down
Advanced User
Advanced User


Joined: 03 Nov 2021
Status: Offline
Points: 74
Post Options Post Options   Thanks (0) Thanks(0)   Quote ChrisChris Quote  Post ReplyReply Direct Link To This Post Posted: 20 Feb 2022 at 11:25am
FYI... I checked and you have this part available for free in POD but it is wrong.

Pin 1 should be as I've indicated above in SOT353-180D.

The part number is Diodes Inc. MMBD4448HCQW.

Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5239
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 20 Feb 2022 at 12:09pm

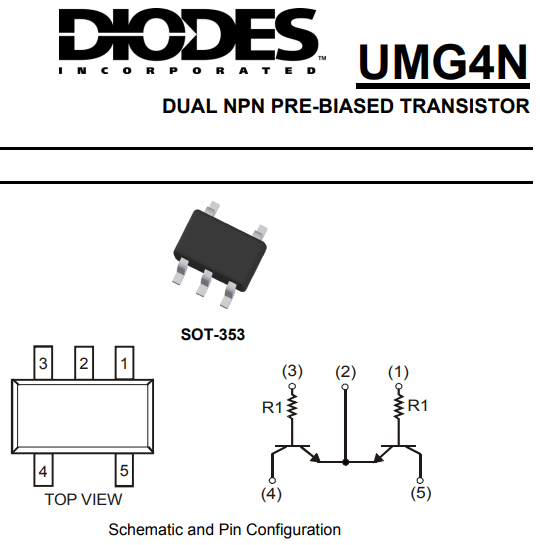

I guess Diodes, Inc. has multiple pin configurations for their SOT-353. Very unusual for a top-rated component manufacturer.

Diodes does not call the Case Code for the MMBD4448HCQW part number SOT353-180D.

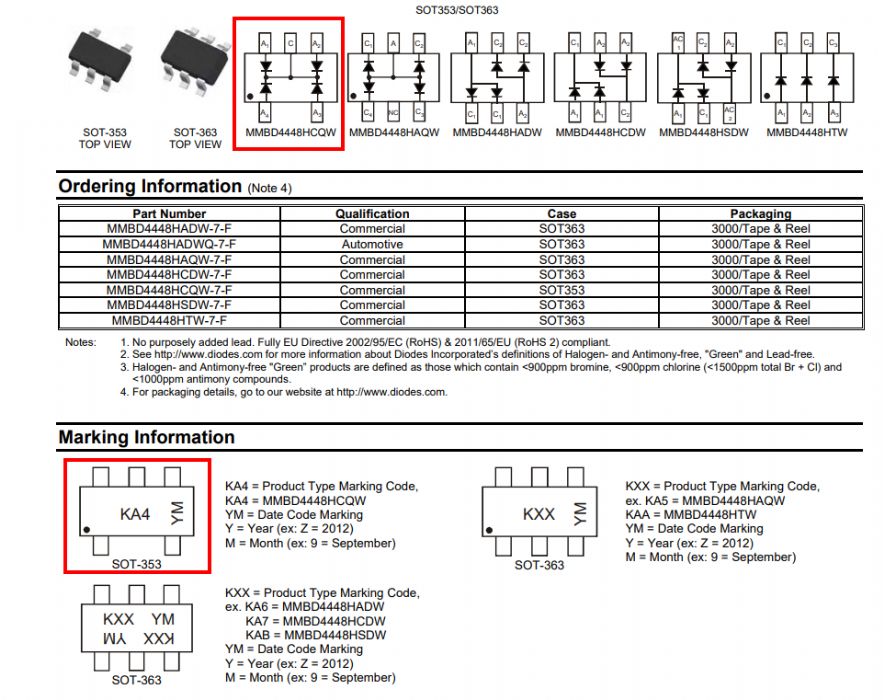

Nor does it actually print the pin assignments in the MMBD4448HCQW datasheet -

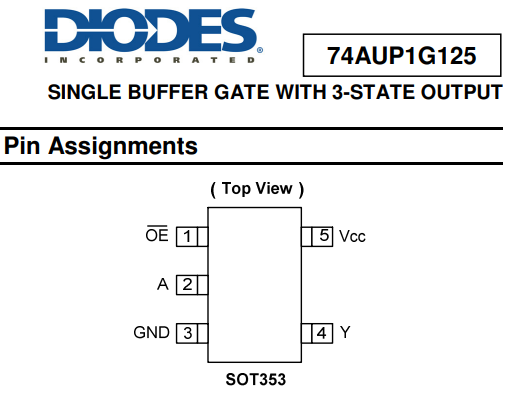

Here's another part number:



Stay connected - follow us! Twitter - LinkedIn
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5239
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 20 Feb 2022 at 12:19pm
The Diodes part number series MMBD4448HCQW on POD will be updated by Monday morning with the new Case Code - SOT353-180D

Thank you for reporting this issue.

Stay connected - follow us! Twitter - LinkedIn
Back to Top
ChrisChris View Drop Down
Advanced User
Advanced User


Joined: 03 Nov 2021
Status: Offline
Points: 74
Post Options Post Options   Thanks (0) Thanks(0)   Quote ChrisChris Quote  Post ReplyReply Direct Link To This Post Posted: 20 Feb 2022 at 12:19pm
SOT-353-180D is my name, to differentiate the two. Anyway, the datasheet indicates case labeling will have a pin 1 marker, so assembly will be confused if I don't crate a custom part for this.


So how should I handle this?

Thanks,
Chris

Back to Top
ChrisChris View Drop Down
Advanced User
Advanced User


Joined: 03 Nov 2021
Status: Offline
Points: 74
Post Options Post Options   Thanks (0) Thanks(0)   Quote ChrisChris Quote  Post ReplyReply Direct Link To This Post Posted: 20 Feb 2022 at 12:21pm
OK, I will pull the part from POD on Monday when it's ready.

Thanks, Tom!


Back to Top
