SOT23-6P65 footprint and padstack

 Post Reply Post Reply
Author
Message
manu View Drop Down
Active User
Active User


Joined: 29 Nov 2018
Status: Offline
Points: 25
Post Options Post Options   Thanks (0) Thanks(0)   Quote manu Quote  Post ReplyReply Direct Link To This Post Topic: SOT23-6P65 footprint and padstack
    Posted: 29 Apr 2021 at 12:43am
Hello,

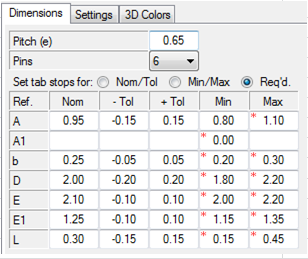

With 2020 version, when I want to have a SOT23-6P65 footprint with these values :


I get this padstasck :


In 2021.04, with the same values, I get this message : "Pads were trimmed to clear the body."
and pads are like this :


Please could you explain to me what is the difference ? what is the new calculation and why ?
What means""Pads were trimmed to clear the body."?

datasheet link : https://www.mouser.fr/datasheet/2/308/NST45010MW6_D-1813786.pdf

Thank you in advance
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5301
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 29 Apr 2021 at 8:19am
In V2021.04 pads are being trimmed for Gull wing lead parts when the A1 package stand-off is less than 0.03.

You can change this in Tools > Options > Pad Stack Rules > SMD Minimum Trim and Spacings > Minimum Trim Stand-off Height. > 0.03

Change to 0.00 if you want to leave the pads under a package that has no standoff.
