SC-82AB Package

 Post Reply Post Reply
Author
Message
BryanT View Drop Down
Advanced User
Advanced User
Avatar

Joined: 06 Mar 2012
Location: Cupertino, CA
Status: Offline
Points: 55
Post Options Post Options   Thanks (0) Thanks(0)   Quote BryanT Quote  Post ReplyReply Direct Link To This Post Topic: SC-82AB Package
    Posted: 12 Dec 2013 at 12:16pm
Hi Tom/Nick,

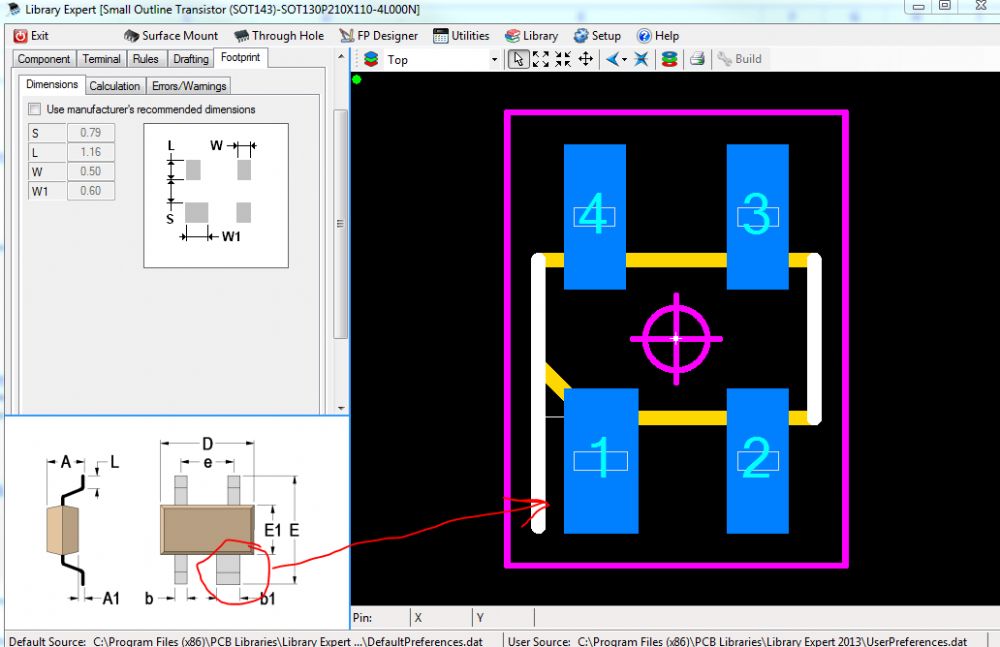

I was trying to develop a footprint for a SC-82Ab package and saw some discrepancies in Library Expert.  I used the SOT143 template since I didnt see a choice for a SC82AB.  Looks like the pic showing the package may be upside down?  The pic shows the power pin on the right.  Footprint shows it on the left.  Am I looking at this correctly?  My part has the power pin on the right.  Can I change those 2 pins?
