"S" dim for DFN 2 Pin & Avago template request

 Post Reply Post Reply
Author
Message
jameshead View Drop Down
Expert User
Expert User
Avatar

Joined: 20 Mar 2012
Location: Oxfordshire, UK
Status: Offline
Points: 576
Post Options Post Options   Thanks (0) Thanks(0)   Quote jameshead Quote  Post ReplyReply Direct Link To This Post Topic: "S" dim for DFN 2 Pin & Avago template request
    Posted: 17 Sep 2012 at 1:10am
I used the Dual Flat No-Lead (DFN 2 Pin) calculator to create a footprint for an Avago ASMT-Bx20-AS000 LED since it seemed the closest match.

Datasheet here:

http://www.avagotech.com/docs/AV02-0389EN

I entered pitch as 2.65 mm to begin with (3.2 mm - 0.55 mm) along with the other dims that match up well.

Clicking Footprint and Dimensions after the calculation to enter the manufacturers recommended soldering land pattern and there's no S dim in this calculator.  May an S dim be added for times users want to "adapt" a calculator to a device?

I went back to the component dims and changed the pitch to 3.1 mm (4.2 mm - 1.1 mm) to get around it, and re-entered the W and L dimensions from the manufacturer's datasheet so easily worked around but thought adding an S might be neater.

Can we have an Avago template added?


Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5239
Post Options Post Options   Thanks (1) Thanks(1)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 17 Sep 2012 at 8:21am
Can you please create and send me a Avago template and I'll add it to the installer.

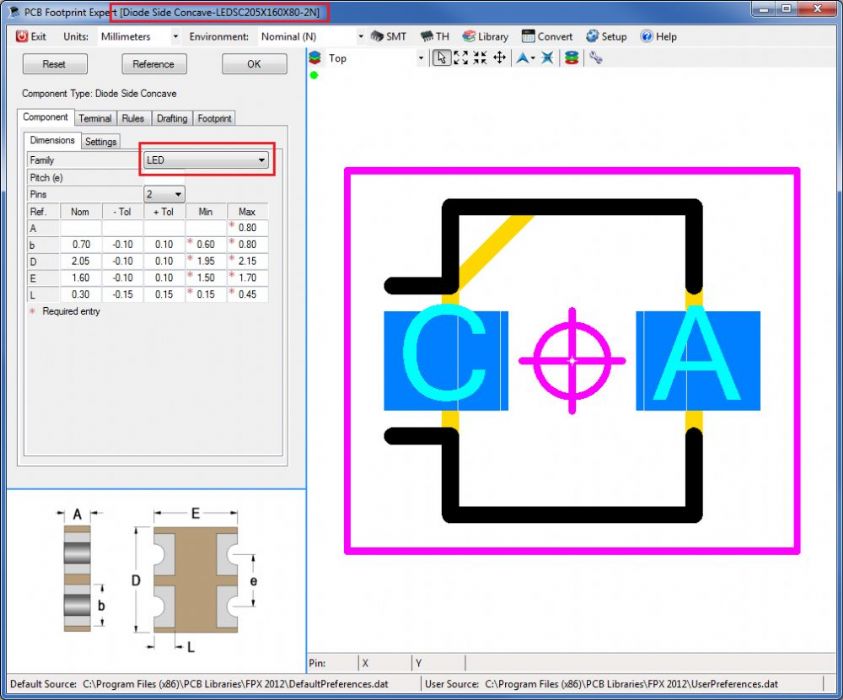

The component family for this part - http://www.avagotech.com/docs/AV02-0389EN is the 2-pin "Side Concave Diode/LED" -


Back to Top
jameshead View Drop Down
Expert User
Expert User
Avatar

Joined: 20 Mar 2012
Location: Oxfordshire, UK
Status: Offline
Points: 576
Post Options Post Options   Thanks (0) Thanks(0)   Quote jameshead Quote  Post ReplyReply Direct Link To This Post Posted: 17 Sep 2012 at 8:32am
Thanks Tom, I'll e-mail you an Avago template directly.

To be honest I did stop for a second on the Diode Side Concave calculator but moved quickly on because picture showed a four pin device with an "e" dimension so I just assumed there wouldn't be a two pin version.
