Rounded Corners on Thermal Tab Pattern Paste Mask

 Post Reply Post Reply
Author
Message
 Rating: Topic Rating: 1 Votes, Average 5.00  Topic Search Topic Search  Topic Options Topic Options
Volkmar View Drop Down
New User
New User
Avatar

Joined: 19 Mar 2012
Location: Germany
Status: Offline
Points: 13
Post Options Post Options   Thanks (1) Thanks(1)   Quote Volkmar Quote  Post ReplyReply Direct Link To This Post Topic: Rounded Corners on Thermal Tab Pattern Paste Mask
    Posted: 25 Aug 2022 at 11:46pm
Hi,

PCB Footprint Experts generates Thermal Tab Pattern Paste Mask as Rectangle Shapes.

By rounding the corners of the paste mask openings, solder paste release from the stencil is improved.

That is why I would like to see rounded corners on thermal tab paste mask patterns by applying the existing Corner Rounding values.

At the moment I put the radii manually on smaller sized pattern paste mask where paste release may be an issue.

Still it would not hurt for large paste mask openings to also have rounded corners.

Cheers,
Volkmar
...yet there's method in't.
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5183
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 29 Aug 2022 at 10:37pm

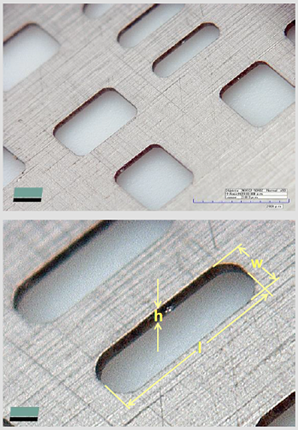

The Paste Mask Aperture openings are laser cut.

Even though the shape in the CAD library is rectangle, the stencil mfr. automatically rounds the corners.

These Stencil Cuts are from a rectangular pad shape or Stencil Aperture Opening.



Stay connected - follow us! Twitter - LinkedIn
