Radial (Disk) CORRECT OR WRONG
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
m.elsayed View Drop Down
Expert User
Expert User


Joined: 22 Sep 2016
Status: Offline
Points: 255 		Post Options Post Options   Thanks (0) Thanks(0)   Quote m.elsayed Quote  Post ReplyReply Direct Link To This Post Topic: Radial (Disk) CORRECT OR WRONG
    Posted: 12 Feb 2026 at 11:24am
For this part” SL32 0R530” in this datasheet “"

”

What PCB Model should we use to  create Footprint ?

Is it  “Radial (Disk)?  Correct or wrong,

please add more details foe how to select Model fo cases like this
Back to Top

Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 6010 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 5 hours 24 minutes ago at 8:16am

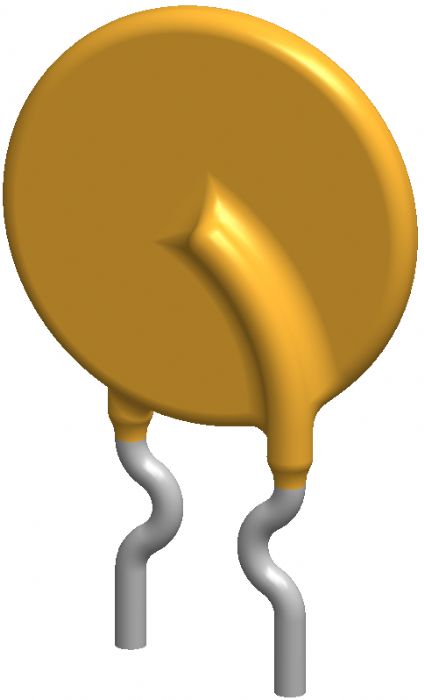

This is the 'Radial (Disk) with Offset Leads'
