When I create a new cell and I bring it into Expedition Library Manager I noticed there are two Placement outlines.
One is normal that is around the part and one is a circle in the center of the part. Is there a an option which would turn off the Placement Outline which is a circle in the center of the part? Thanks, Kirby
|
|
 |
|
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5960 |
Post Options
Thanks(1)
Quote Reply
Posted: 18 Aug 2021 at 11:05am |
|
Turn off (uncheck the box) to the Centroid origin circle:

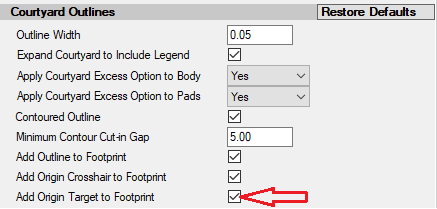

"Tools > Options > Drafting > Courtyard Outlines > Add Origin Target to Footprint"  |
|
|
|
|
