 Topic: Pad Corner style only on one edgePosted: 14 hours 36 minutes ago at 12:49am |
|

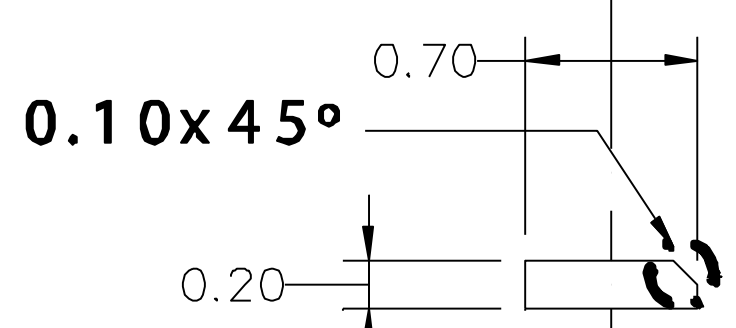

I want to set the pad corner style only on one edge because the pad looks like this:

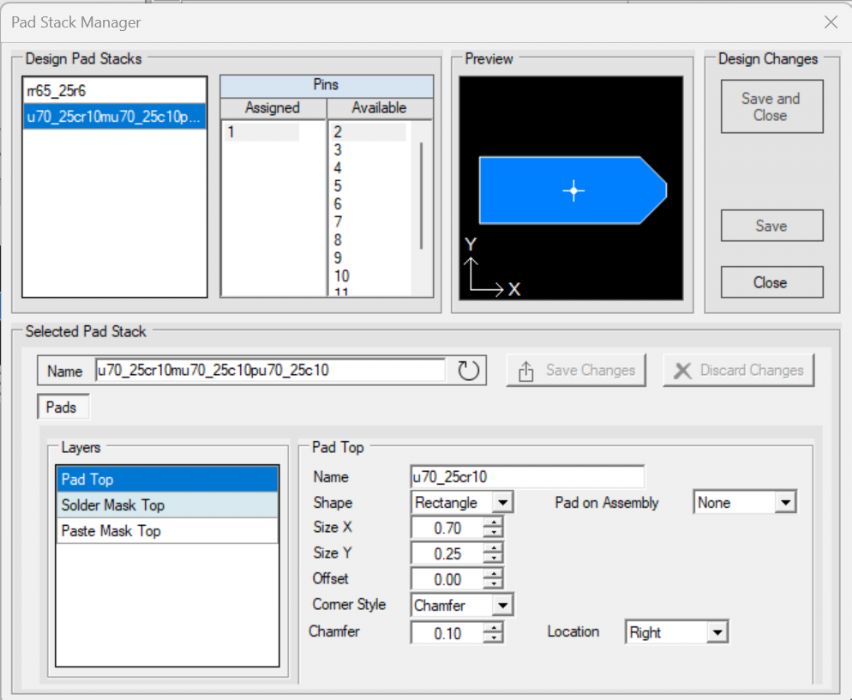

 The editor does it on both edges:  |
|
 |
|
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Online Points: 5971 |
Post Options
Thanks(0)
Quote Reply
Posted: 7 hours 32 minutes ago at 7:53am |
|

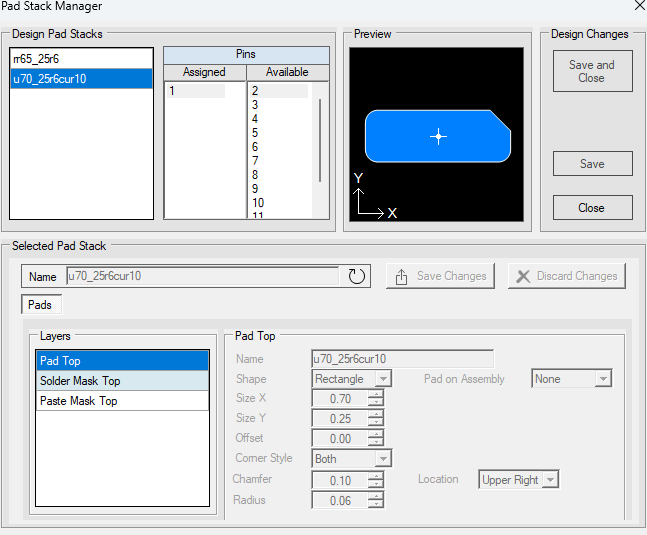

In the Pad Stack Designer select the Pad Shape 'Both' Rounded & Chamfer.
Then make the Rounded radius zero '0' and make the Chamfer any value. Then move the Chamfer Corner to any corner. Let us know if this works for you. |
|
|
|
|
pcbinfratec
New User
Joined: 19 Nov 2025 Status: Offline Points: 1 |
Post Options
Thanks(0)
Quote Reply
Posted: 45 minutes ago at 2:40pm |
Just beautiful. I missed the 'both' option.
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Online Points: 5971 |
Post Options
Thanks(0)
Quote Reply
Posted: 10 minutes ago at 3:15pm |
|
You can turn the radius off by entering a zero '0' value.
You can move the chamfer to any corner. Or you can have both radius on 3 corners and a chamfer on one corner. |
|
|
|
|
