   Hi Tom,

I'd like to report that the 3D Step model is not generated by selecting SMD Molded Body Capacitor Polarized.

thank you in advance!

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
fabioclimb Members Profile Send Private Message Find Members Posts Add to Buddy List New User Joined: 06 Nov 2020 Status: Offline Points: 2	Post Options Post Reply Quote fabioclimb Report Post Thanks(0) Quote Reply Topic: Molded Body 3D STEP Missing Posted: 11 Dec 2020 at 5:31am
	Hi Tom, I'd like to report that the 3D Step model is not generated by selecting SMD Molded Body Capacitor Polarized. thank you in advance!



Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5798	Post Options Post Reply Quote Tom H Report Post Thanks(1) Quote Reply Posted: 11 Dec 2020 at 9:41am

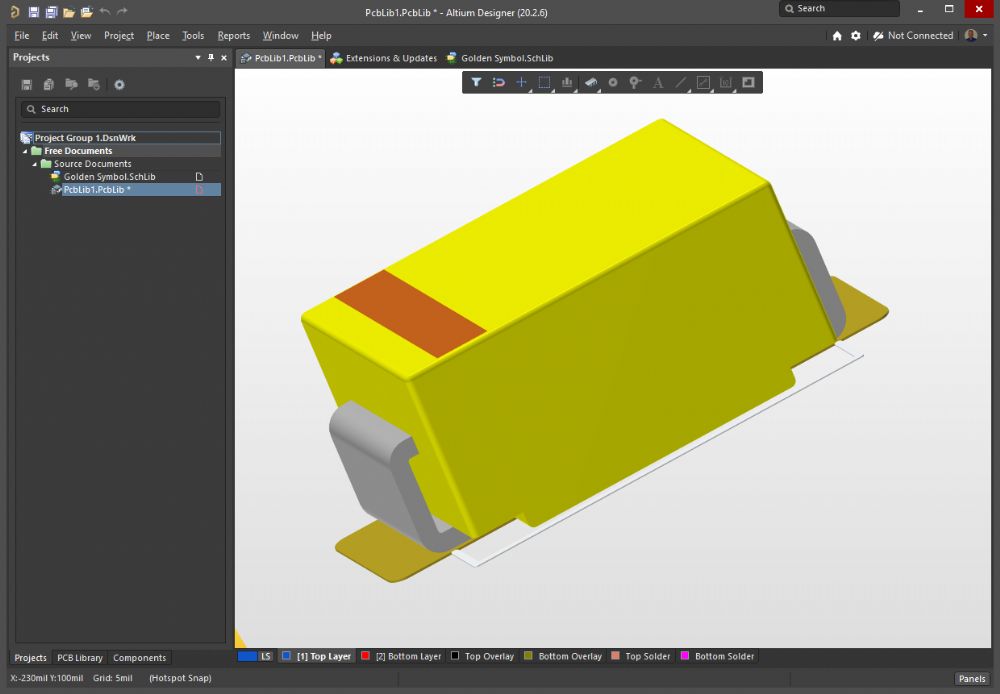

	I can't reproduce this. I'm using Library Expert V2020.03.
	Stay connected - follow us! X - LinkedIn

kaplanent Members Profile Send Private Message Find Members Posts Add to Buddy List Active User Joined: 18 Sep 2012 Location: CT Status: Offline Points: 15	Post Options Post Reply Quote kaplanent Report Post Thanks(0) Quote Reply Posted: 09 Feb 2022 at 10:51am
	Wow, I just noticed this issue with the CAPPM footprints. I have all our Molded footprints in a separate library. I thought the library was corrupt, but all other families of molded output the STEP file. I guess I hadn't had the need for a new molded cap footprint in over a year. So you're not the only one. I guess we will have to update to the latest version as there is no other 2020 update. Thanks, Alan

Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5798	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 09 Feb 2022 at 11:11am

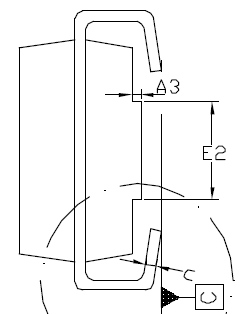

	The Molded Body component family uses the JEDEC DO-214 as the main model. Note: the "D" dimension MUST be at least 0.80 mm larger than the "D1" dimension or the 3D STEP model will be corrupt. The Terminal Lead thickness is 0.20 mm on both sides, and it needs 0.20 mm lead bend radius. If you still have a problem, you will have to upgrade to V2022.02 pre-release (is the latest version right now). Or the last release V2022.01.
