Layer numbering

 Post Reply Post Reply
Author
Message
mike.sz View Drop Down
New User
New User


Joined: 24 Jul 2018
Status: Offline
Points: 2
Post Options Post Options   Thanks (0) Thanks(0)   Quote mike.sz Quote  Post ReplyReply Direct Link To This Post Topic: Layer numbering
    Posted: 24 Jul 2018 at 5:51am
Hello and Welcome

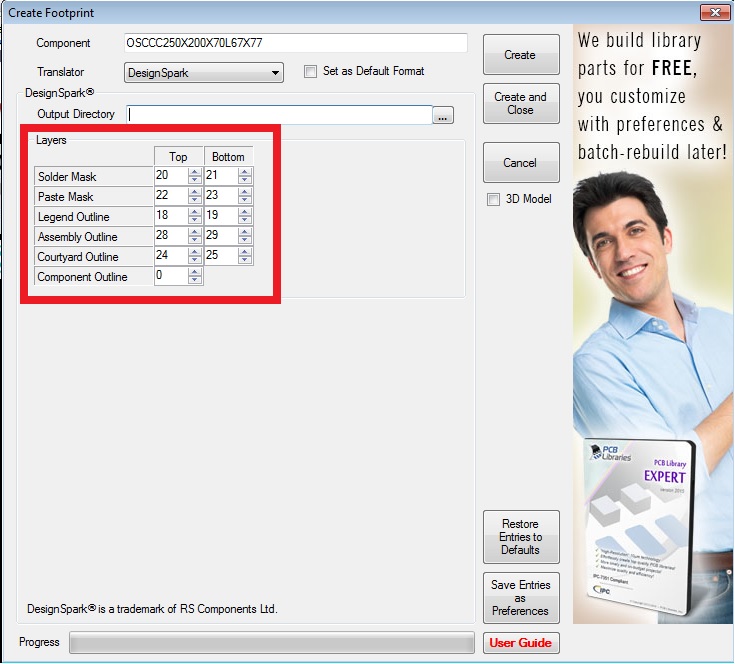

I don't understand layers numbering while exporting footprint. I marked it in red on the image below:



I can't find in Design Spark's options anything that would relate these numbers to layers settings in DS. I have been trying by trial and error, putting random numbers but I can't quite figure it out.

Best Regards

Mike
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 3990
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 21 Nov 2018 at 12:28pm
Aren't these the default layers for Design Spark?
