Hello,

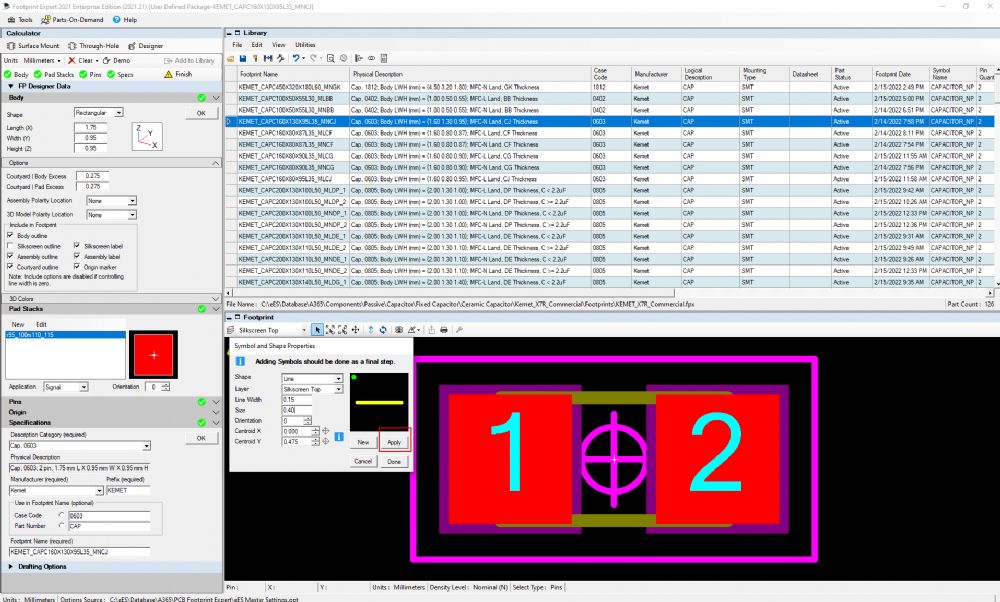

Why I manually add a line on the silkscreen layer in FP Designer, it is drawn green despite my silkscreen layer being set to yellow in my master options. All of the other footprints for which I've checked Include Silkscreen Outline in FP Designer display as yellow. It can be seen here that the dialog box is showing the preview in yellow, but apply makes it green.

Before hitting apply....



After hitting apply...



Thanks,
Chris
Back to Top
ChrisChris View Drop Down
Advanced User
Advanced User


Joined: 03 Nov 2021
Status: Offline
Points: 74
Post Options Post Options   Thanks (0) Thanks(0)   Quote ChrisChris Quote  Post ReplyReply Direct Link To This Post Posted: 15 Feb 2022 at 6:40pm
Ugh... ignore. Once I clicked off the Footprint screen it changed to yellow!?
