FP Designer - Move Origin
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Richard C View Drop Down
Active User
Active User


Joined: 02 May 2014
Status: Offline
Points: 22 		Post Options Post Options   Thanks (1) Thanks(1)   Quote Richard C Quote  Post ReplyReply Direct Link To This Post Topic: FP Designer - Move Origin
    Posted: 13 May 2014 at 3:57am

Hi,

In FP Designer, when creating complex RJ45 or USB connectors, I am constantly having to reset the origin as I follow the drawing.  Nearly all the origin points in these types of drawings are referenced to a pin.

Right now, I select a pin, write down the co-ordinates and enter these as new origin co-ordinates in the Origin tab.

Is it possible to reset (relocate) the origin?

It would make the entry process a lot smoother and quicker.

Thanks,
Back to Top

Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5964 		Post Options Post Options   Thanks (2) Thanks(2)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 13 May 2014 at 5:55am

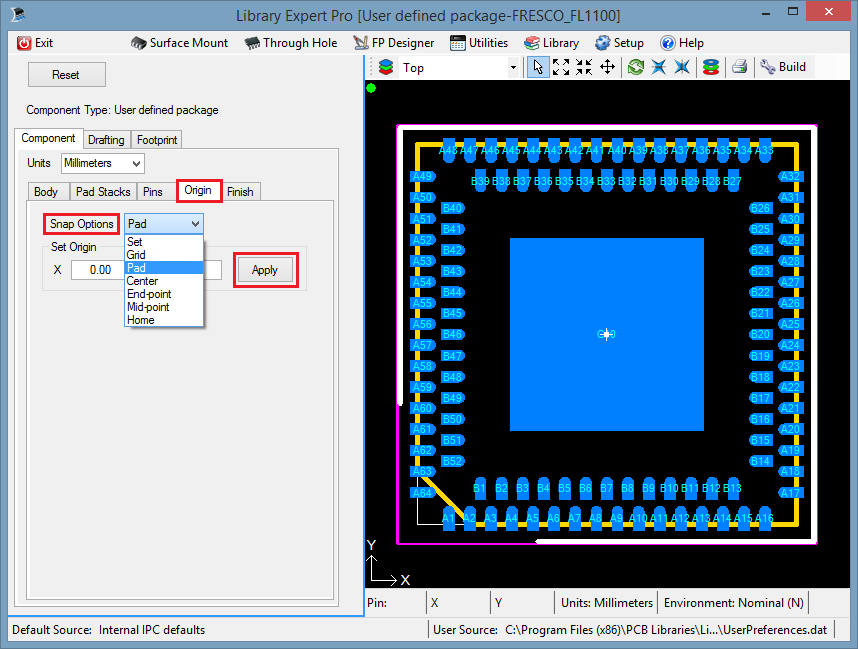

Are you using the FP Designer "Origin" tab? Set your preference and click with your mouse.

Stay connected - follow us! X - LinkedIn
Back to Top
Richard C View Drop Down
Active User
Active User


Joined: 02 May 2014
Status: Offline
Points: 22 		Post Options Post Options   Thanks (1) Thanks(1)   Quote Richard C Quote  Post ReplyReply Direct Link To This Post Posted: 13 May 2014 at 7:37am

No I wasn't and I have realised that using this feature gives me the feature I was looking for.

Problem sorted.

Many thanks,  Smile
Back to Top
