Footprint For Chip Type Crystal

 Post Reply Post Reply
Author
Message
chads108 View Drop Down
Active User
Active User
Avatar

Joined: 17 Oct 2012
Location: Plano, TX
Status: Offline
Points: 32
Post Options Post Options   Thanks (0) Thanks(0)   Quote chads108 Quote  Post ReplyReply Direct Link To This Post Topic: Footprint For Chip Type Crystal
    Posted: 25 Oct 2012 at 12:03pm

I have a crystal that more resembles a chip type component than the crystal component in Footprint Wizard.

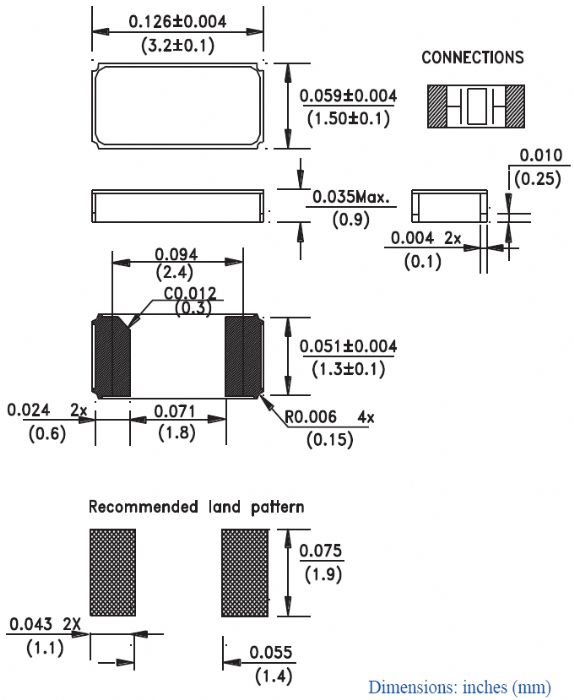

It actually has concave corners like an oscillator, but only has 2 pins - http://www.abracon.com/Resonators/ABS07.pdf

How would you handle this situation?

Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 4701
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 25 Oct 2012 at 12:21pm
This is a new component family. 2-pin Corner Concave Crystal. I would use the mfr. recommended pattern.


Back to Top
chads108 View Drop Down
Active User
Active User
Avatar

Joined: 17 Oct 2012
Location: Plano, TX
Status: Offline
Points: 32
Post Options Post Options   Thanks (0) Thanks(0)   Quote chads108 Quote  Post ReplyReply Direct Link To This Post Posted: 25 Oct 2012 at 12:23pm
What about a naming convention for this?  Do you forsee there being something specific for this?
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 4701
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 25 Oct 2012 at 12:31pm
For right now I would call it - XTAL_ABRACON_ABS07

There is no IPC standard for this package yet.

The 1st sort in the library would be on the component family, then the Mfr. and then the part number.

Back to Top
