Hi All,

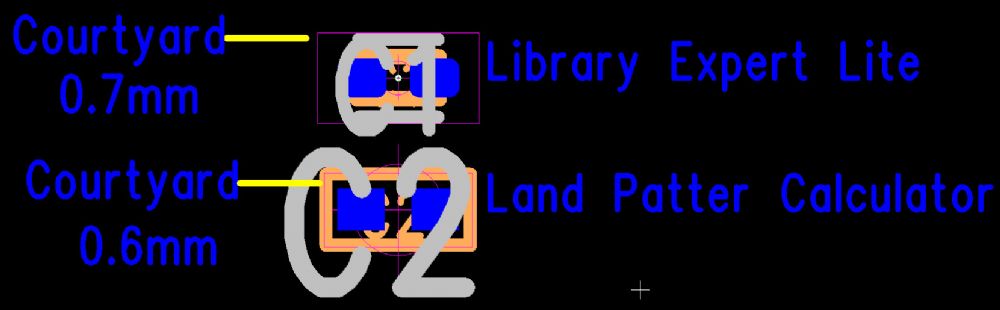

Why is there so big difference in courtyard when calculating Land Pattern with Library Experts vs IPC-7351 Land Pattern Calculator.

HGottlieb

There is also a difference in footprint to.
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 4735
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 27 Apr 2015 at 4:47am
It all has to do with Library Expert Pro User Preferences.

The Courtyard has several options in the Pro version.

Also, the pad shapes has several options in the Pro version.

The Lite version is a direct copy of Pro without global User Preferences, Library Editor and FP Designer.

Stay connected - follow us! Twitter - LinkedIn
Back to Top
hgottlieb View Drop Down
New User
New User


Joined: 27 Apr 2015
Status: Offline
Points: 5
Post Options Post Options   Thanks (0) Thanks(0)   Quote hgottlieb Quote  Post ReplyReply Direct Link To This Post Posted: 27 Apr 2015 at 5:41am
Hi Tom,

I thought that Library Expert was following some rules from IPC-7351 and not personal rule set.
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 4735
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 27 Apr 2015 at 6:52am
The Library Expert Lite and Pro both come with IPC-7351 rules as the default settings.

But the Pro version allows the user to create multiple global preference files that deviate from the default rules.

You can also change the rules in Lite, one part at a time after you manually enter all the package dimensions.

Stay connected - follow us! Twitter - LinkedIn
Back to Top
hgottlieb View Drop Down
New User
New User


Joined: 27 Apr 2015
Status: Offline
Points: 5
Post Options Post Options   Thanks (0) Thanks(0)   Quote hgottlieb Quote  Post ReplyReply Direct Link To This Post Posted: 27 Apr 2015 at 6:58am
Thanks Tom
I am aware of these opportunities with a purchased and a free version, but you did not answer my question.
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 4735
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 27 Apr 2015 at 9:25am
I believe you are referring to the old obsolete LP Wizard Calculator that Mentor Graphics owns. It was created in 2005.

The Library Expert is the new IPC Calculator that produces the correct footprint pattern. It is up to date with 2015 technology.

I hope this answers your question.
