Configurable Pin 1 Dot

 Post Reply Post Reply
Author
Message
 Rating: Topic Rating: 1 Votes, Average 5.00  Topic Search Topic Search  Topic Options Topic Options
sstallion View Drop Down
Active User
Active User


Joined: 31 Oct 2018
Status: Offline
Points: 35
Post Options Post Options   Thanks (1) Thanks(1)   Quote sstallion Quote  Post ReplyReply Direct Link To This Post Topic: Configurable Pin 1 Dot
    Posted: 23 Jun 2021 at 7:36am
For some components, I often reposition the Pin 1 dot after importing into CAD.

It would be very convenient if this could be configurable (eg. Top Left, Top Right, etc.) for those parts that have more flexibility with placement like QFNs and QFPs.

Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5188
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jun 2021 at 7:52am
My favorite feature is to manually add all Polarity Marking for Silkscreen and Assembly layers.

This way you can place any shape, size and location as a 2D-Line.

Small parts get small polarity markers and large parts get big polarity markers.

Capacitors get + symbols and diodes get diodes with Anode/Cathode and connectors get triangles, SOP's get dots or squares or triangles. They can be filled or unfilled.

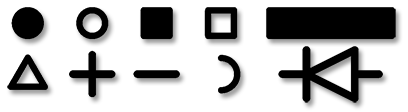

Here is the current list of symbols, but we're adding more.



The auto-move feature in Footprint Expert works on a course grid when zoomed out and a fine grid when zoomed in. Making placement in the perfect location easy.

Stay connected - follow us! Twitter - LinkedIn
Back to Top
sstallion View Drop Down
Active User
Active User


Joined: 31 Oct 2018
Status: Offline
Points: 35
Post Options Post Options   Thanks (0) Thanks(0)   Quote sstallion Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jun 2021 at 8:02am
Thanks Tom! I was hoping for something a little more automated, but that's a good suggestion. Is there a way I can have the symbol respect clearance without needing to manually setup a grid? I usually keep my dots 0.25mm from the pad (or silkscreen outline).
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5188
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 02 Sep 2021 at 10:27am
After talking with several Footprint Expert users, every CAD tool has a different approach to handling Pin 1 Polarity dots that are actually attributes and not really 2D line objects.

It would be difficult to investigate 25 CAD tools to figure out how each vendor handles moveable silkscreen dots.

So the feedback from our users is that they import a footprint into their library and add an automated pin 1 dot to the parts that they want so that it's moveable in the PCB design.

Stay connected - follow us! Twitter - LinkedIn
Back to Top
ckhalleran View Drop Down
Active User
Active User


Joined: 22 Nov 2017
Status: Offline
Points: 26
Post Options Post Options   Thanks (0) Thanks(0)   Quote ckhalleran Quote  Post ReplyReply Direct Link To This Post Posted: 08 Oct 2021 at 10:08am
FWIW... I've been adding an indicator to footprints in Altium (after running the script from Footprint Expert). For an indicator, I use text "B" with TrueType font = SWMeteo (which results in a filled dot). A text height of 240 mils gives me about a 40 mil dia filled dot on the silkscreen. Also, I make the dot so it's location is locked. On the PCB, if I want to adjust that dot's location, I can drag it (say yes, because it's locked) and drop it in it's new location. It stays locked though.

For some reason, the dot that I have on Assembly layer of the footprint is not filled (when I make a Draftsman Doc)… it's just a circle.
