CM Chip Inductor (4-Lead)

 Post Reply Post Reply
Author
Message
Snakeeater View Drop Down
New User
New User
Avatar

Joined: 25 Mar 2014
Location: Canada
Status: Offline
Points: 2
Post Options Post Options   Thanks (0) Thanks(0)   Quote Snakeeater Quote  Post ReplyReply Direct Link To This Post Topic: CM Chip Inductor (4-Lead)
    Posted: 22 Oct 2014 at 8:51am
Hello,

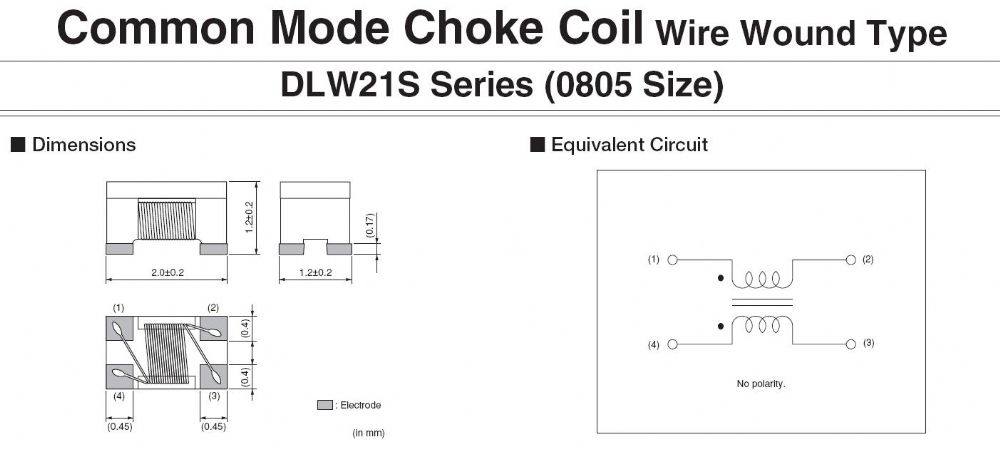

Looking for input on constructing the following component:

It is a Common Mode Chip Inductor (4-Pins, 0805)

DLW21SN900HQ2L



I was thinking it would fall into the Chip Array family, or possibly the DFN 4-Lead.

Would someone kindly steer me in the right direction?

Thank you in advance,

Iain
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 4602
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 22 Oct 2014 at 10:34am

Murata does not have a recommended pattern in their datasheet -

http://search.murata.co.jp/Ceramy/image/img/PDF/ENG/L0114S0133DLW21S.pdf

I would recommend a 0.1 mm periphery around the component lead.

This part would take 3 minutes to create in the Library Expert "FP Designer".
