Add Switch to DFN family

 Post Reply Post Reply
Author
Message
caclark View Drop Down
Advanced User
Advanced User


Joined: 24 Oct 2012
Location: Cincinnati, OH
Status: Offline
Points: 157
Post Options Post Options   Thanks (0) Thanks(0)   Quote caclark Quote  Post ReplyReply Direct Link To This Post Topic: Add Switch to DFN family
    Posted: 19 Oct 2016 at 11:14am
As of the last year in my company at least there has been a migration from large leaded switches (G & Accel in my case) to 2 & 4 pin DFN packages. So is it possible to get a switch added to the DFN family pull-down list?

For reference if needed you can look at almost anything from HT Micro (http://www.htmicro.com/).
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5240
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2017 at 9:05am

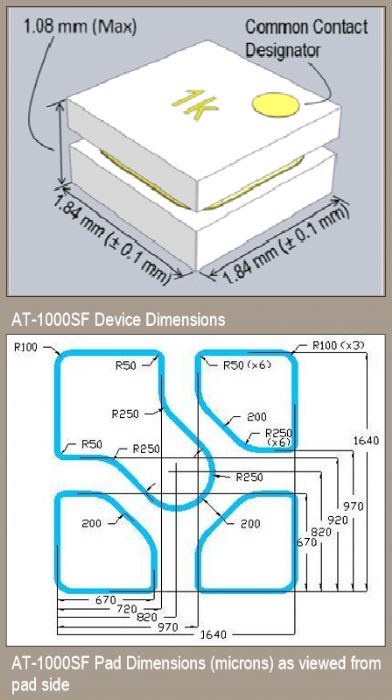

These types of DFN packages must use the mfr. recommended pattern.
There is no IPC Calculator for this custom package.
However, this is really cool technology and we would like to add this pattern to POD.


Stay connected - follow us! Twitter - LinkedIn
