3D Models - Auto / Custom Color Configuration!

 Post Reply Post Reply
Nick B View Drop Down
Admin Group
Admin Group

Joined: 02 Jan 2012
Status: Offline
Points: 1746
Post Options Post Options   Thanks (0) Thanks(0)   Quote Nick B Quote  Post ReplyReply Direct Link To This Post Topic: 3D Models - Auto / Custom Color Configuration!
    Posted: 15 Dec 2015 at 10:23pm

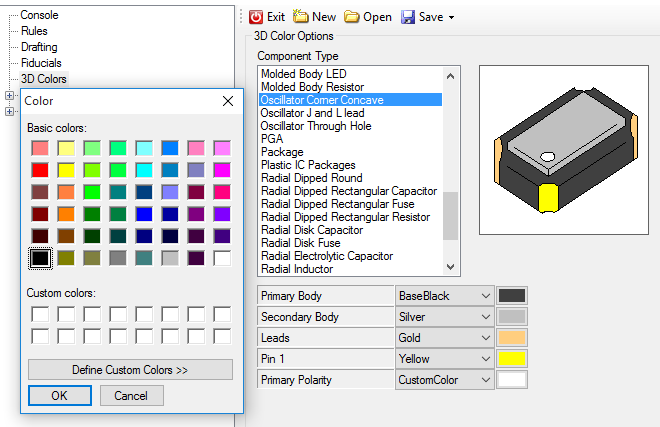

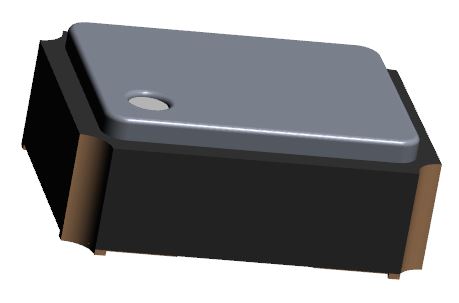

PCB Libraries has been improving the Library Expert support for 3D STEP. The Library Expert currently outputs to 21 different CAD formats and 3D STEP. It allows users to specify preferred rotation and colors (see image) for various aspects of components for 50+ component families, then automatically output from any of 1 million parts. It also allows users to automatically generate the models by simply entering a set of component dimensions.
The Library Expert simultaneously processes preferences for footprints (pad shapes, tolerance, line widths, rotation, contour courtyards, etc), so one can get both footprint and 3D STEP model, and Schematic Symbol support is on the horizon. Parts can be rebuilt with modified colors and preferences either one-by-one, or entire libraries at a time.
