2012.37 Released!

 Post Reply Post Reply
Author
Message
Nick B View Drop Down
Admin Group
Admin Group


Joined: 02 Jan 2012
Status: Offline
Points: 1904
Post Options Post Options   Thanks (0) Thanks(0)   Quote Nick B Quote  Post ReplyReply Direct Link To This Post Topic: 2012.37 Released!
    Posted: 23 Dec 2012 at 11:54am
Version 2012.37 has just been released!

FIXED:

  • Assembly outline changing when silkscreen outline mapping was changed
  • Axial Lead – Tools > Regenerate Library > Name & Description
  • Flange Mount (TO-220) Vertical – updated GUI text that said “Enter at least 2 of the 3 items” to “Optional Dimension
  • Flange Mount (TO-220) Vertical – updated the silkscreen outline polarity marker
  • Pin Grid Array (PGA) – not loading correctly from FPX with pin number method (which also caused the unit conversion problem)
  • Batch Create – added paste and solder mask controls and relocated environment control dropdown to the top of dialog box
  • PADS – Rotated parts throwing an Auto-import error
  • Expedition – added an extra Kill Call for Library Manager just after it gets done importing

NEW:

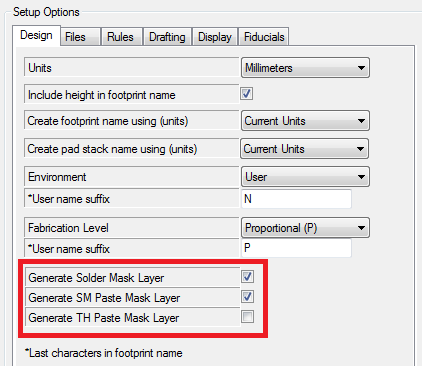

  • Solder and Paste Mask on/off controls for both surface mount and through-hole (added to user preferences/global preferences)

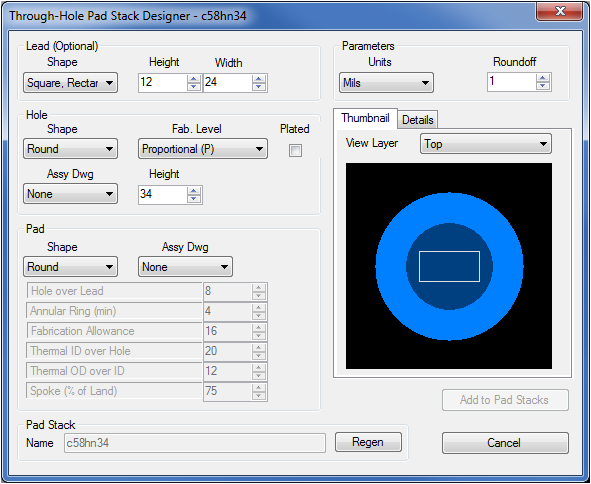

  • Padstack Calculator for through-hole (added to Utilities)
