 Topic: Through-hole Naming Convention Suffix?Posted: 13 Sep 2025 at 12:16am |
|
I noticed Through-hole Naming Convention doesn't contain an N suffix.
However Surface Mount contains the suffix 'N' when using Nominal Density Level in Options.
Can you explain this point? |
|
 |
|
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5949 |
Post Options
Thanks(0)
Quote Reply
Posted: 13 Sep 2025 at 8:09am |
|

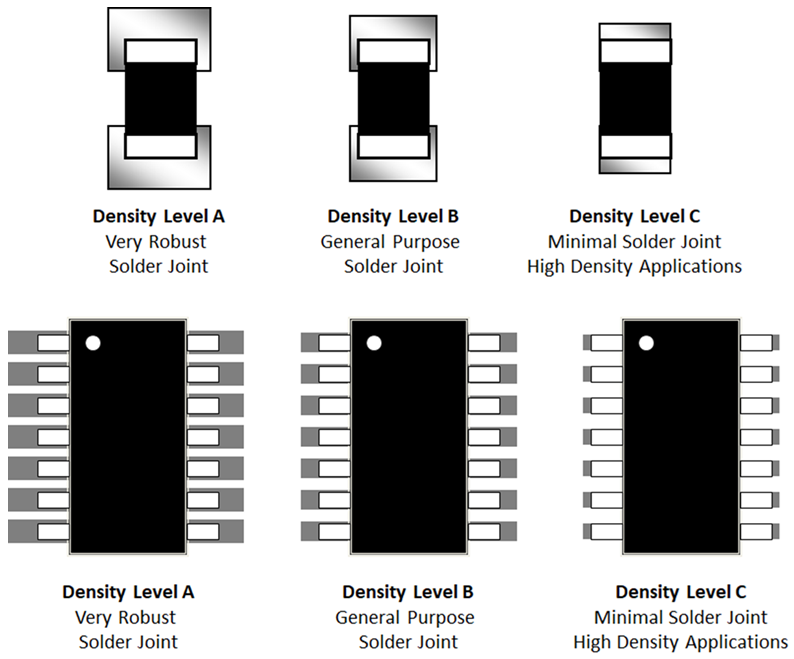

The 3-Tier library system only pertains to Surface Mount footprints.
 There is only 1-Tier for through-hole and we refer to it as 'Proportional' pad stacks where the pad diameter is 1.5 times the hole diameter.  |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5949 |
Post Options
Thanks(0)
Quote Reply
Posted: 13 Sep 2025 at 8:17am |
|
Also, when a Surface Mount footprint uses the Mfr. Recommended Pattern or the footprint is non-standard, there is no Density Level for these footprints as they are the mfr. recommended patterns.
|
|
|
|
|
m.elsayed
Expert User
Joined: 22 Sep 2016 Status: Offline Points: 214 |
Post Options
Thanks(0)
Quote Reply
Posted: 14 Sep 2025 at 5:50am |
|
So the mentioned statement means there is no suffix N in below cases also through hole, is this correct?
"When a Surface Mount footprint uses the Mfr. Recommended Pattern or the footprint is non-standard, there is no Density Level for these footprints as they are the mfr. recommended patterns." |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5949 |
Post Options
Thanks(0)
Quote Reply
Posted: 14 Sep 2025 at 9:08am |
|
Yes
|
|
|
|
|
