Hi,

Is it possible to create a part (say a surface mount cap) with one pad having a notch cut out at one corner?
Back to Top

Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5951 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jan 2014 at 8:53am

Absolutely! Use the Footprint Designer module to define your custom padstack.


Stay connected - follow us! X - LinkedIn
Back to Top
Nick B View Drop Down
Admin Group
Admin Group
Avatar

Joined: 02 Jan 2012
Status: Offline
Points: 1972 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Nick B Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jan 2014 at 3:13pm

You can view how to create/define custom padstacks in most of the videos found here:

http://www.pcblibraries.com/training
Stay connected - follow us! X - LinkedIn
Back to Top
Nick B View Drop Down
Admin Group
Admin Group
Avatar

Joined: 02 Jan 2012
Status: Offline
Points: 1972 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Nick B Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2014 at 8:51pm

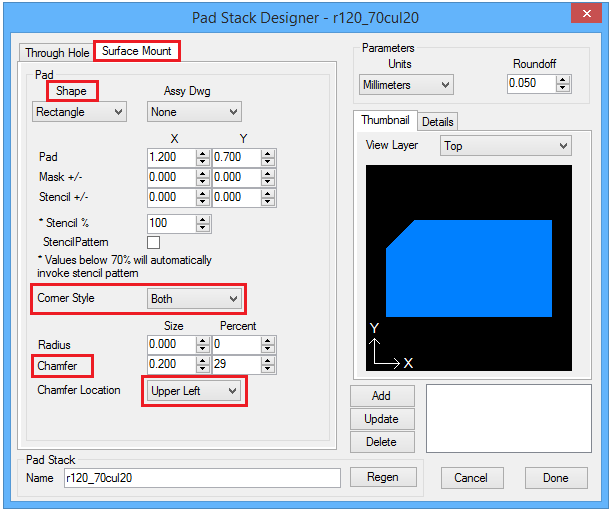

In the Pad Stack Designer Select –

  1. Surface Mount
  2. Pad Shape Rectangle
  3. Enter your pad size length and width
  4. Corner Style “BOTH” (so that you can also create radius corners on the remaining 3 corners)
  5. Chamfer Size
  6. Chamfer Location

As far as creating a "Notch" like an "L" shaped pad, FP Designer can not do that yet.
