Hi All,

I am creating a symbol for two pin sensor but don't know what the symbol should be like and what about its refdes. Wish you can give me some suggestions on it.

If IPC has a definition on the symbol or its refdes?

Thanks in advanceSmile

Nightwish
Back to Top
jameshead View Drop Down
Expert User
Expert User
Avatar

Joined: 20 Mar 2012
Location: Oxfordshire, UK
Status: Offline
Points: 567
Post Options Post Options   Thanks (0) Thanks(0)   Quote jameshead Quote  Post ReplyReply Direct Link To This Post Posted: 04 Sep 2012 at 1:29am
What's the sensor for?

BS 60617 has symbols for a Proximity Sensor device, Capacitive proximity detector, touch sensor, magnetically operated proximatry switch etc. and also a symbol for "signal translator".

If it's something not covered elsewhere I generally use the symbol for signal translator and put something near by to indicate what it is sensing.
Back to Top
Nightwish View Drop Down
Active User
Active User
Avatar

Joined: 20 Feb 2012
Location: Shanghai China
Status: Offline
Points: 33
Post Options Post Options   Thanks (0) Thanks(0)   Quote Nightwish Quote  Post ReplyReply Direct Link To This Post Posted: 06 Sep 2012 at 9:41pm
Hi Jameshead,

Sorry to reply you late. This is a ultrasonic sensor from Murata. I don't know if there is an universal standard on this.

Thanks,

Nightwish
Back to Top
jameshead View Drop Down
Expert User
Expert User
Avatar

Joined: 20 Mar 2012
Location: Oxfordshire, UK
Status: Offline
Points: 567
Post Options Post Options   Thanks (0) Thanks(0)   Quote jameshead Quote  Post ReplyReply Direct Link To This Post Posted: 07 Sep 2012 at 1:24am
I'd use a microphone symbol for this and maybe put the frequency range under it just to show that it's not a normal microphone.

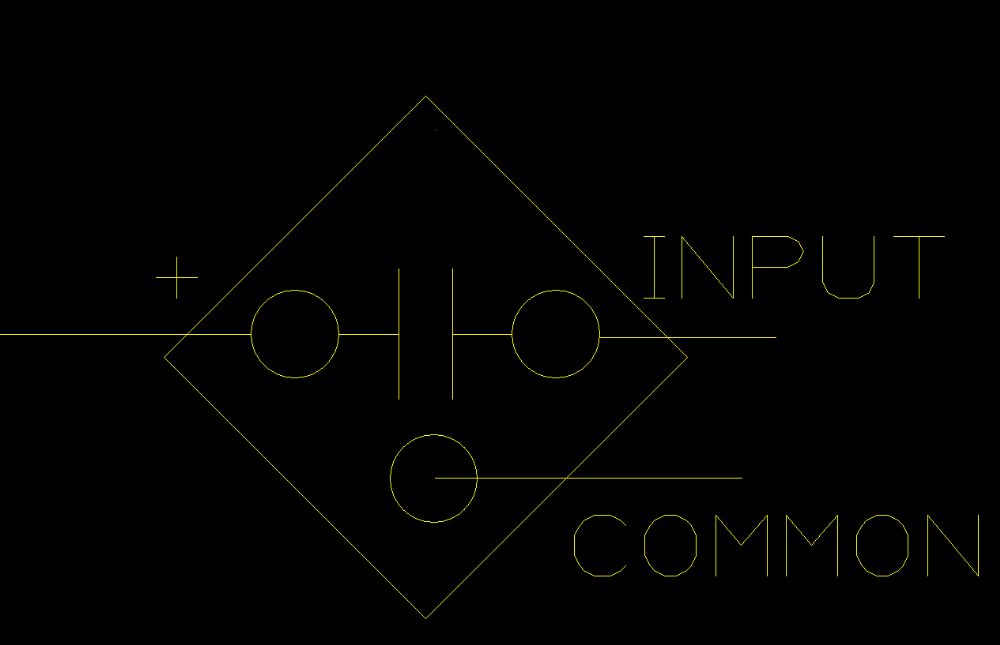

There is another used symbol though:
