Oblong BGA Pads Instead of Round For 1st Row

 Post Reply Post Reply
toshas View Drop Down
Advanced User
Advanced User

Joined: 03 Jul 2017
Status: Offline
Points: 71
Post Options Post Options   Thanks (0) Thanks(0)   Quote toshas Quote  Post ReplyReply Direct Link To This Post Topic: Oblong BGA Pads Instead of Round For 1st Row
    Posted: 30 Sep 2021 at 10:41am

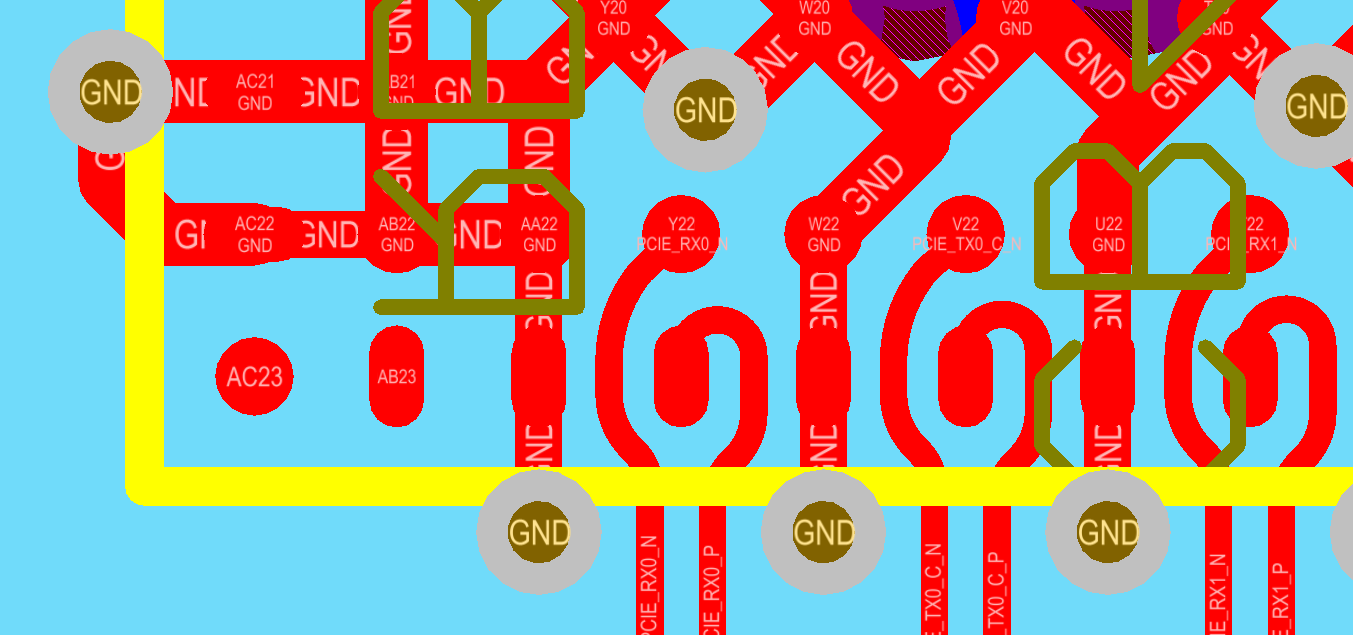

In reference design special shape (narrow oblong instead of round) of a 1st row pads is applied.

How often this trick is used? What is about soldering result for a volume production?

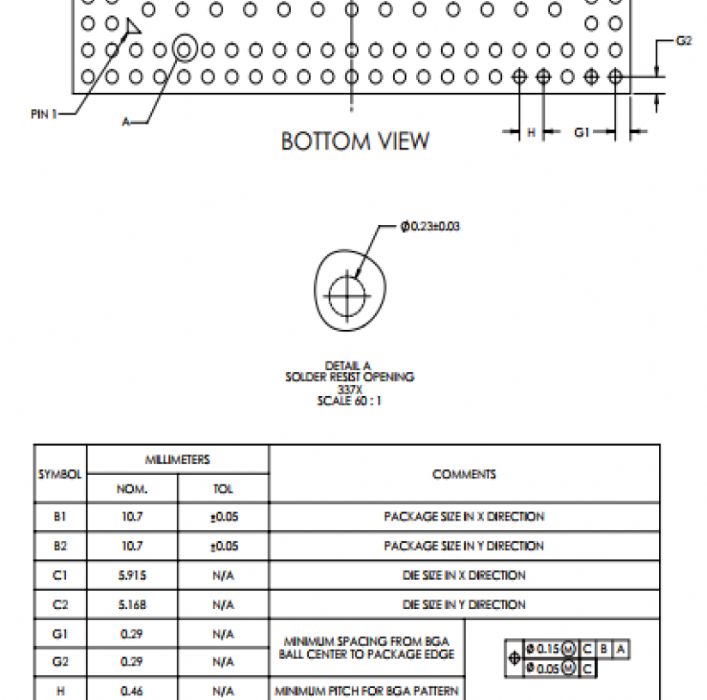

BGA has 0.46 pitch, without this trick 3 mils width/separation is required, with it 3.7 mils width/separation is acceptable.

These traces and pads are most complicated place in particular PCB design and defines fabrication requirements for a whole project.

Default pad size is a 10mils, oblong pad has 7 mils x 13 mils dimensions.

How it can be calculated for proper soldering?

Is it possible to change size even more (6 mils x 14 mils) to get low-cost 4 mils width/separation requirement for fabrication?

Many thanks!
