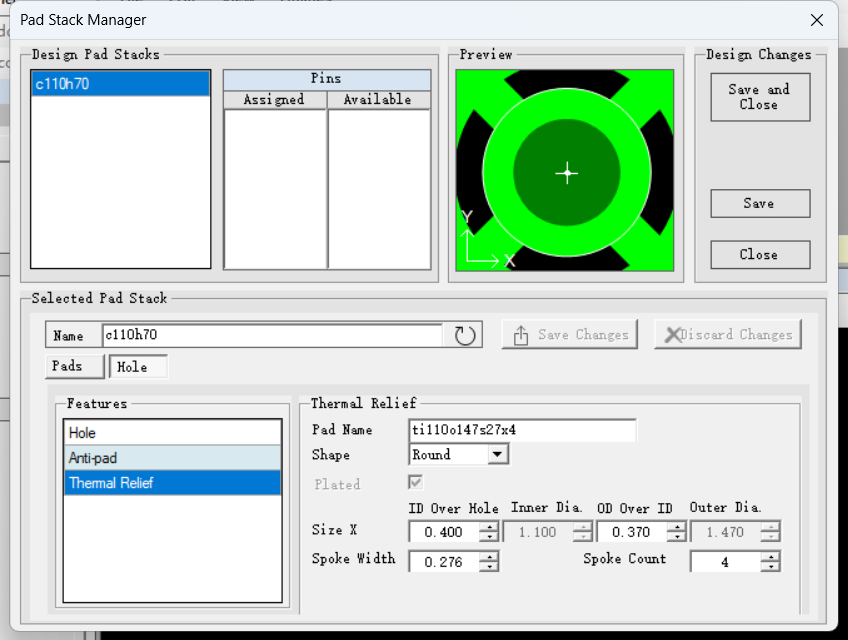

footprint expert can't generate thermal relief pad

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic


   # Allegro script
# Generated by FPX Expert
#   name:       c110h70

QtSignal MainWindow New triggered
QtSignal fileNewDialog dataCombo CurrentIndexChanged "Thru Pin"
QtSignal fileNewDialog dataCombo activated "Thru Pin"
QtSignal fileNewDialog browse clicked
QtFillin c110h70.pad
QtSignal fileNewDialog OK clicked

QtSignal MainWindow Units CurrentIndexChanged Millimeter
QtFillin Yes
QtSignal MainWindow DecimalPlaces CurrentIndexChanged 4
QtSignal MainWindow DecimalPlaces activated 4

QtSignal GuidedDrillTab HoleType activated Circle
QtSignal GuidedDrillTab holeXSize editingFinished 0.7
QtSignal GuidedTabsParent GuidedTabs currentChanged Drill
QtSignal GuidedDrillTab Plating CurrentIndexChanged Plated
QtSignal GuidedDrillTab Plating activated Plated

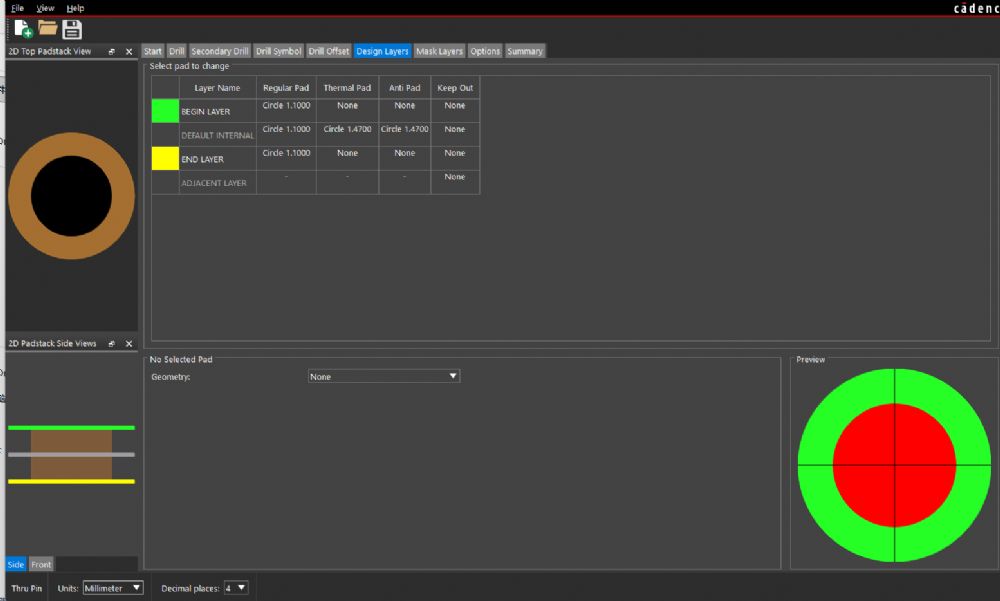

QtSignal GuidedDesignLayersTab LayersTable cellClicked 0 "Regular Pad" 0 2
QtSignal GuidedDesignLayersTab PadShape CurrentIndexChanged Circle
QtSignal GuidedDesignLayersTab PadShape activated Circle
QtSignal GuidedDesignLayersTab PadDiameter editingFinished 1.1

QtSignal GuidedDesignLayersTab LayersTable cellClicked 1 "Regular Pad" 1 2
QtSignal GuidedDesignLayersTab PadShape CurrentIndexChanged Circle
QtSignal GuidedDesignLayersTab PadShape activated Circle
QtSignal GuidedDesignLayersTab PadDiameter editingFinished 1.1

QtSignal GuidedDesignLayersTab LayersTable cellClicked 1 "Thermal Pad" 1 3
QtSignal GuidedDesignLayersTab PadShape CurrentIndexChanged Circle
QtSignal GuidedDesignLayersTab PadShape activated Circle
QtSignal GuidedDesignLayersTab PadDiameter editingFinished 1.47

QtSignal GuidedDesignLayersTab LayersTable cellClicked 1 "Anti Pad" 1 4
QtSignal GuidedDesignLayersTab PadShape CurrentIndexChanged Circle
QtSignal GuidedDesignLayersTab PadShape activated Circle
QtSignal GuidedDesignLayersTab PadDiameter editingFinished 1.47

QtSignal GuidedDesignLayersTab LayersTable cellClicked 2 "Regular Pad" 2 2
QtSignal GuidedDesignLayersTab PadShape CurrentIndexChanged Circle
QtSignal GuidedDesignLayersTab PadShape activated Circle
QtSignal GuidedDesignLayersTab PadDiameter editingFinished 1.1

QtSignal GuidedMaskLayersTab LayersTable cellClicked 0 "Regular Pad" 0 1
QtSignal GuidedMaskLayersTab PadShape CurrentIndexChanged Circle
QtSignal GuidedMaskLayersTab PadShape activated Circle
QtSignal GuidedMaskLayersTab PadDiameter editingFinished 1.1

QtSignal GuidedMaskLayersTab LayersTable cellClicked 1 "Regular Pad" 1 1
QtSignal GuidedMaskLayersTab PadShape CurrentIndexChanged Circle
QtSignal GuidedMaskLayersTab PadShape activated Circle
QtSignal GuidedMaskLayersTab PadDiameter editingFinished 1.1

QtSignal GuidedDrillSymbol FigureType CurrentIndexChanged Cross
QtSignal GuidedDrillSymbol FigureType activated Cross
QtSignal GuidedDrillSymbol FigureWidth editingFinished 1.0
QtSignal GuidedDrillSymbol FigureHeight editingFinished 1.0

QtSignal OptionsTab SuppressPadsOption clicked true
QtSignal MainWindow Save triggered
QtSignal MainWindow Exit triggered

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
qianfeng.tang Members Profile Send Private Message Find Members Posts Add to Buddy List New User Joined: 3 hours 3 minutes ago Status: Offline Points: 2	Post Options Post Reply Quote qianfeng.tang Report Post Thanks(0) Quote Reply Topic: footprint expert can't generate thermal relief pad Posted: 2 hours 41 minutes ago at 6:35pm
	# Allegro script # Generated by FPX Expert # name: c110h70 QtSignal MainWindow New triggered QtSignal fileNewDialog dataCombo CurrentIndexChanged "Thru Pin" QtSignal fileNewDialog dataCombo activated "Thru Pin" QtSignal fileNewDialog browse clicked QtFillin c110h70.pad QtSignal fileNewDialog OK clicked QtSignal MainWindow Units CurrentIndexChanged Millimeter QtFillin Yes QtSignal MainWindow DecimalPlaces CurrentIndexChanged 4 QtSignal MainWindow DecimalPlaces activated 4 QtSignal GuidedDrillTab HoleType activated Circle QtSignal GuidedDrillTab holeXSize editingFinished 0.7 QtSignal GuidedTabsParent GuidedTabs currentChanged Drill QtSignal GuidedDrillTab Plating CurrentIndexChanged Plated QtSignal GuidedDrillTab Plating activated Plated QtSignal GuidedDesignLayersTab LayersTable cellClicked 0 "Regular Pad" 0 2 QtSignal GuidedDesignLayersTab PadShape CurrentIndexChanged Circle QtSignal GuidedDesignLayersTab PadShape activated Circle QtSignal GuidedDesignLayersTab PadDiameter editingFinished 1.1 QtSignal GuidedDesignLayersTab LayersTable cellClicked 1 "Regular Pad" 1 2 QtSignal GuidedDesignLayersTab PadShape CurrentIndexChanged Circle QtSignal GuidedDesignLayersTab PadShape activated Circle QtSignal GuidedDesignLayersTab PadDiameter editingFinished 1.1 QtSignal GuidedDesignLayersTab LayersTable cellClicked 1 "Thermal Pad" 1 3 QtSignal GuidedDesignLayersTab PadShape CurrentIndexChanged Circle QtSignal GuidedDesignLayersTab PadShape activated Circle QtSignal GuidedDesignLayersTab PadDiameter editingFinished 1.47 QtSignal GuidedDesignLayersTab LayersTable cellClicked 1 "Anti Pad" 1 4 QtSignal GuidedDesignLayersTab PadShape CurrentIndexChanged Circle QtSignal GuidedDesignLayersTab PadShape activated Circle QtSignal GuidedDesignLayersTab PadDiameter editingFinished 1.47 QtSignal GuidedDesignLayersTab LayersTable cellClicked 2 "Regular Pad" 2 2 QtSignal GuidedDesignLayersTab PadShape CurrentIndexChanged Circle QtSignal GuidedDesignLayersTab PadShape activated Circle QtSignal GuidedDesignLayersTab PadDiameter editingFinished 1.1 QtSignal GuidedMaskLayersTab LayersTable cellClicked 0 "Regular Pad" 0 1 QtSignal GuidedMaskLayersTab PadShape CurrentIndexChanged Circle QtSignal GuidedMaskLayersTab PadShape activated Circle QtSignal GuidedMaskLayersTab PadDiameter editingFinished 1.1 QtSignal GuidedMaskLayersTab LayersTable cellClicked 1 "Regular Pad" 1 1 QtSignal GuidedMaskLayersTab PadShape CurrentIndexChanged Circle QtSignal GuidedMaskLayersTab PadShape activated Circle QtSignal GuidedMaskLayersTab PadDiameter editingFinished 1.1 QtSignal GuidedDrillSymbol FigureType CurrentIndexChanged Cross QtSignal GuidedDrillSymbol FigureType activated Cross QtSignal GuidedDrillSymbol FigureWidth editingFinished 1.0 QtSignal GuidedDrillSymbol FigureHeight editingFinished 1.0 QtSignal OptionsTab SuppressPadsOption clicked true QtSignal MainWindow Save triggered QtSignal MainWindow Exit triggered
