Difference Between S & E Convex Chip Arra
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
RLS2004 View Drop Down
Advanced User
Advanced User


Joined: 26 Jan 2012
Location: Seattle,WA
Status: Offline
Points: 51 		Post Options Post Options   Thanks (0) Thanks(0)   Quote RLS2004 Quote  Post ReplyReply Direct Link To This Post Topic: Difference Between S & E Convex Chip Arra
    Posted: 01 Jun 2012 at 12:24pm
CAPCAXE64P210X70-10

Pads are all the same shape, but the component graphic image with dimensions shows end pins are larger.
Back to Top

Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5940 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jun 2012 at 8:34pm

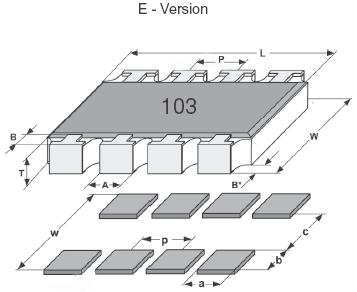

CAPCAXE64P210x70-10 = even pin width

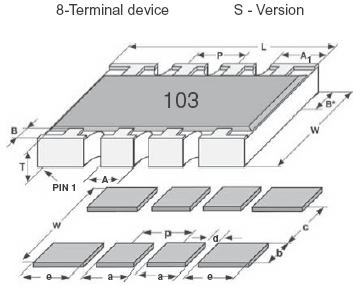

CAPCAXS64P210x70-10 = end pins are larger
